NSN 3110-01-151-0768
Part Details | DUPLEX BALL BEARING
3110-01-151-0768 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Alternate Parts: 6595111563041, 65951-11563-041, 3110-01-151-0768, 01-151-0768, 3110011510768, 011510768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | APR 12, 1983 | 01-151-0768 | 30213 ( BEARING, BALL, DUPLEX ) |
REFERENCE DRAWINGS & PICTURES

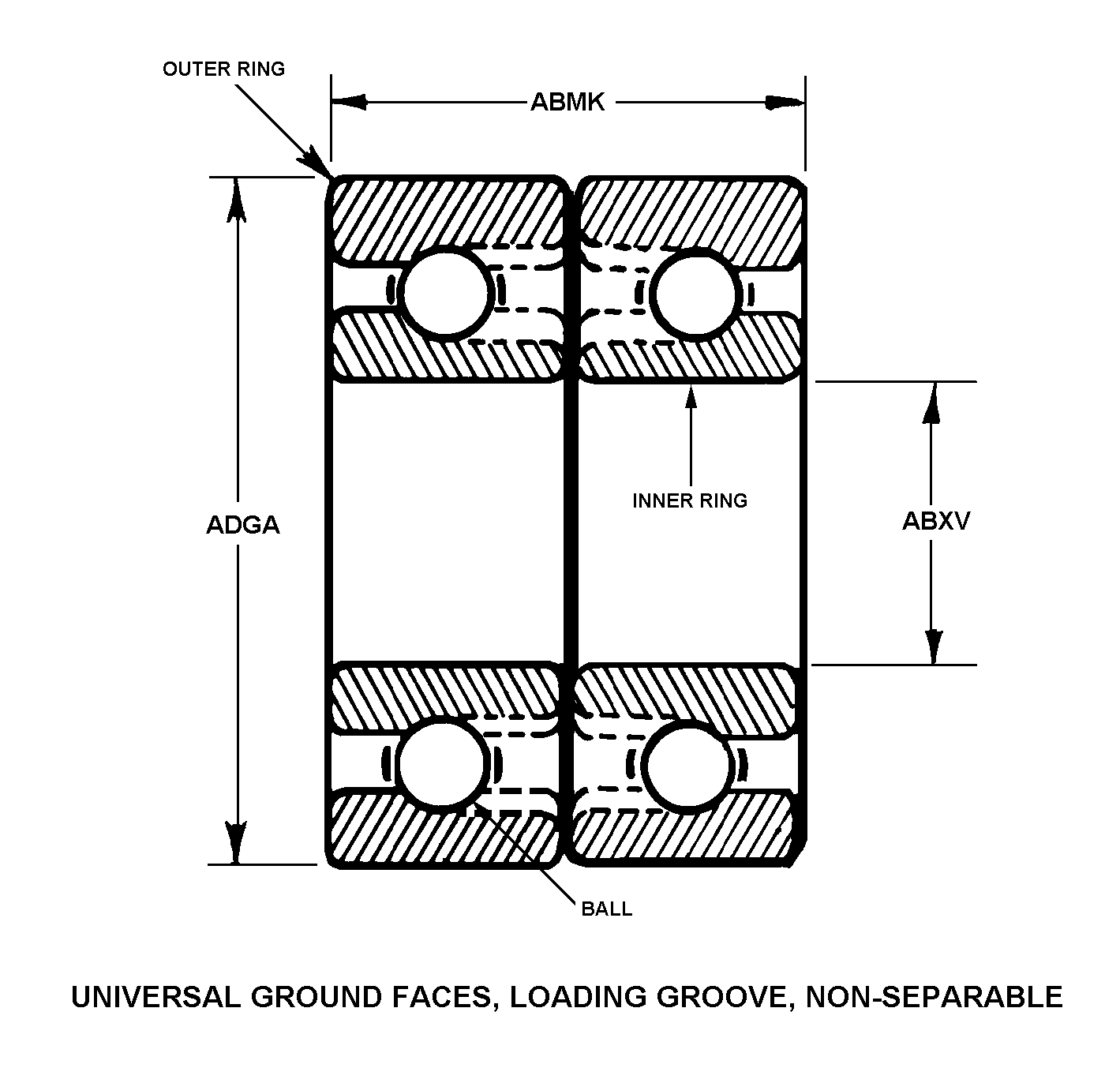

UNIVERSAL GROUND FACES, LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-01-151-0768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65951-11563-041 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 3110-01-151-0768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNIVERSAL GROUND FACES, LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 2.0000 INCHES NOMINAL |
| BORE DIAMETER | 40.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 42.0000 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
