NSN 3110-01-155-8704
Part Details | ANNULAR BALL BEARING
3110-01-155-8704 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: SSUMDRI541X1ZZDB4KV5P38L01, SSUMDRI-541X1ZZDB4KV5P38L01, SSUMDRI541X1ZZDB4KVA5P511102KB, SSUMDRI-541X1ZZDB4KVA5P511102KB, SR541PPB11C8K58, SR541PPB11C87, SR541PPB11C8/7, SR541PPB11C8, 3110-01-155-8704, 01-155-8704, 3110011558704, 011558704
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUN 16, 1983 | 01-155-8704 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

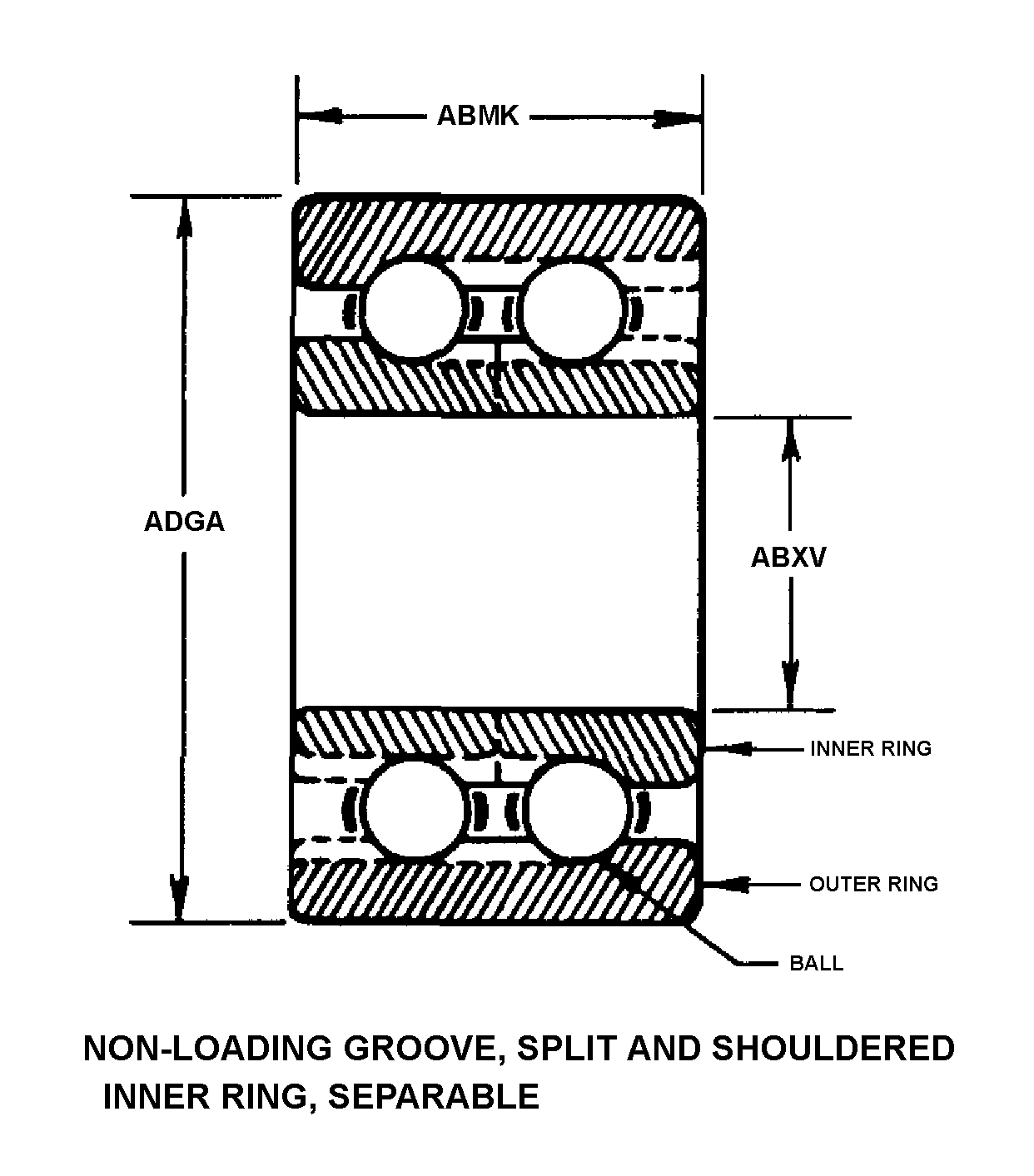

NON-LOADING GROOVE, SPLIT AND SHOULDERED INNER RING, SEPARABLE
Cross Reference | NSN 3110-01-155-8704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSUMDRI-541X1ZZDB4KV5P38L01 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| SSUMDRI-541X1ZZDB4KVA5P511102KB | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| SR541PPB11C8K58 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| SR541PPB11C8/7 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| SR541PPB11C8 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
Technical Data | NSN 3110-01-155-8704
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, SPLIT AND SHOULDERED INNER RING, SEPARABLE |
| OVERALL WIDTH | 0.3750 INCHES NOMINAL |
| BORE DIAMETER | 1.0625 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO. 5T |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | ANGULAR |
| SPECIAL FEATURES | REMOVABLE SHIELDS |
