NSN 3110-01-361-8467
Part Details | DUPLEX BALL BEARING
3110-01-361-8467 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Alternate Parts: 64993541681, 6499-354168-1, 64993541681, 6499-354168-1, 3110-01-361-8467, 01-361-8467, 3110013618467, 013618467
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 27, 1992 | 01-361-8467 | 30213 ( BEARING, BALL, DUPLEX ) |
REFERENCE DRAWINGS & PICTURES

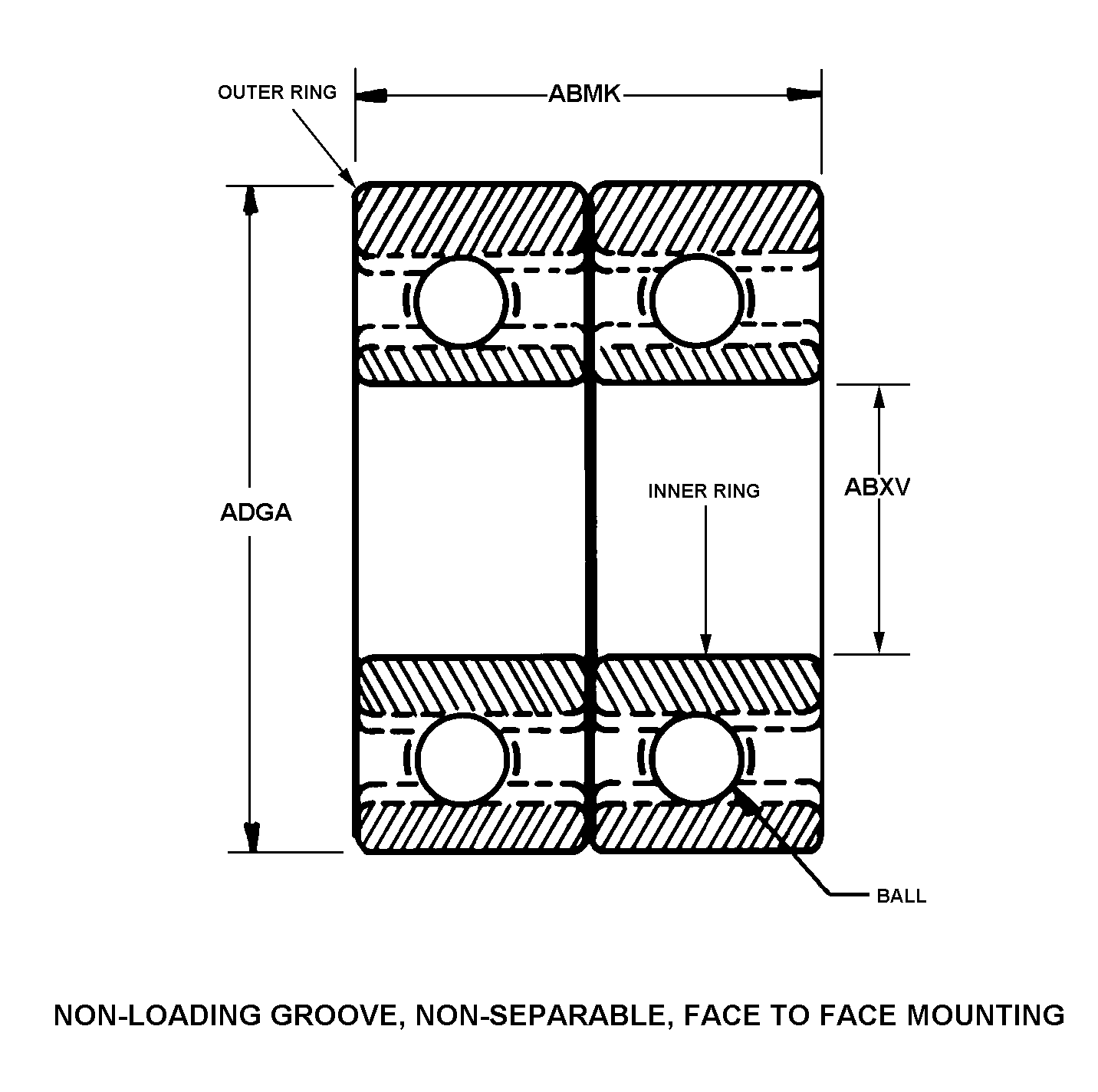

NON-LOADING GROOVE, NON-SEPARABLE, FACE TO FACE MOUNTING
Cross Reference | NSN 3110-01-361-8467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6499-354168-1 | 32828 | KAYDON CORPORATIONDBA KAYDON BEARINGS DIVISION |
| 6499-354168-1 | 80070 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 3110-01-361-8467
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE, FACE TO FACE MOUNTING |
| OVERALL WIDTH | 0.9980 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| BORE DIAMETER | 5.9996 INCHES MINIMUM AND 6.0000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 6.9995 INCHES MINIMUM AND 7.0000 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| SURFACE FINISH | GROUND |
| SHIELD QUANTITY | 1 |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 30.0 DEGREES NOMINAL |
