NSN 3120-01-285-5668
Part Details | JEWEL BEARING
3120-01-285-5668 An item generally round in shape and usually having a centrally located hole. It has at least one flat bearing surface. It is made of precious or semi-precious gem (ruby, sapphire and the like), natural or synthetic. It is intended for use in precision instruments, meters, timing devices, clocks, and the like.
Alternate Parts: MS270472, MS27047-2, MS270472, MS27047-2, 3120-01-285-5668, 01-285-5668, 3120012855668, 012855668
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 16, 1988 | 01-285-5668 | 42832 ( BEARING, JEWEL ) |
REFERENCE DRAWINGS & PICTURES

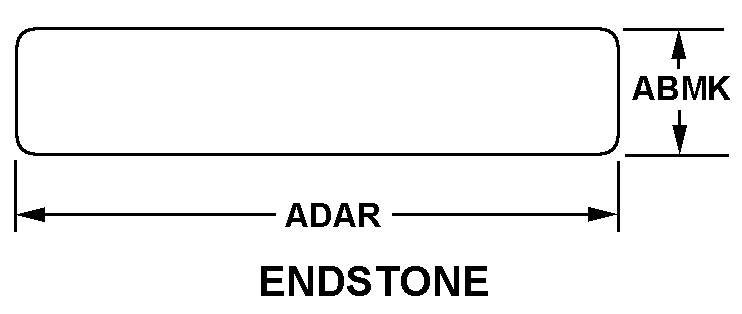

ENDSTONE
Cross Reference | NSN 3120-01-285-5668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27047-2 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS27047-2 | 0Y4A4 | WALTHAM AIRCRAFT CLOCK CORPDBA PRIME TIME CLOCKS |
Technical Data | NSN 3120-01-285-5668
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ENDSTONE |
| OVERALL WIDTH | 0.0100 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.0500 INCHES NOMINAL |
| END ITEM IDENTIFICATION | CLOCK FOR ACFT MODEL F16 |
