NSN 3120-01-373-6768
Part Details | SELF-ALIGNING PLAIN BEARING
3120-01-373-6768 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Alternate Parts: 9536M78P03, 3120-01-373-6768, 01-373-6768, 3120013736768, 013736768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | APR 09, 1993 | 01-373-6768 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

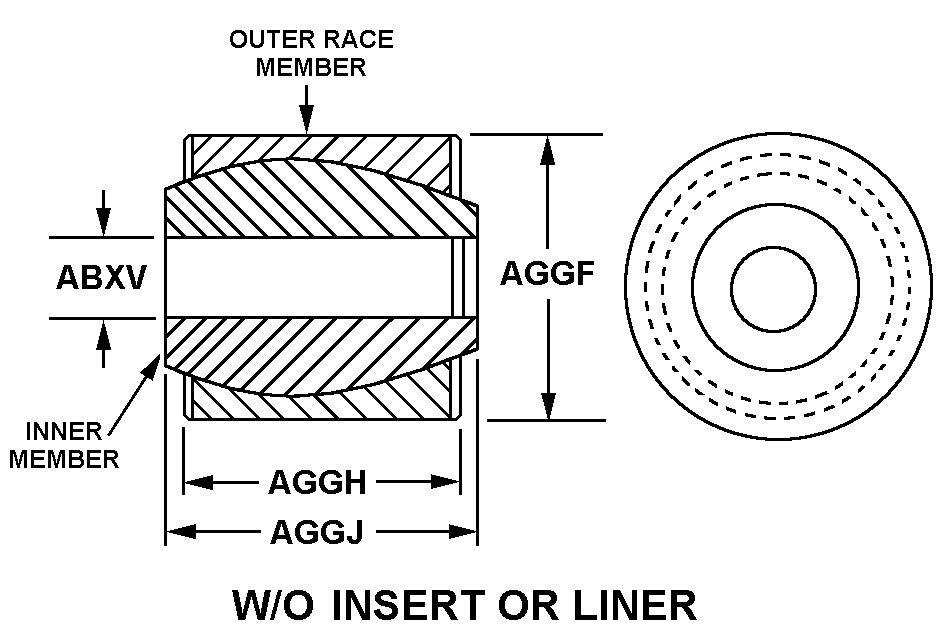

REFERENCE DRAWINGS & PICTURES
WITHOUT INSERT OR LINER
Cross Reference | NSN 3120-01-373-6768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9536M78P03 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 3120-01-373-6768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WITHOUT INSERT OR LINER |
| BORE DIAMETER | 0.5000 INCHES MINIMUM AND 0.5200 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.7490 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.7395 INCHES MINIMUM AND 0.7405 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 2.5300 INCHES MINIMUM AND 2.5500 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | PACER SPECIAL |
