NSN 3120-01-449-0893
Part Details | SELF-ALIGNING PLAIN BEARING
3120-01-449-0893 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Alternate Parts: LJS1224, 3120-01-449-0893, 01-449-0893, 3120014490893, 014490893
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 18, 1997 | 01-449-0893 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
REFERENCE DRAWINGS & PICTURES

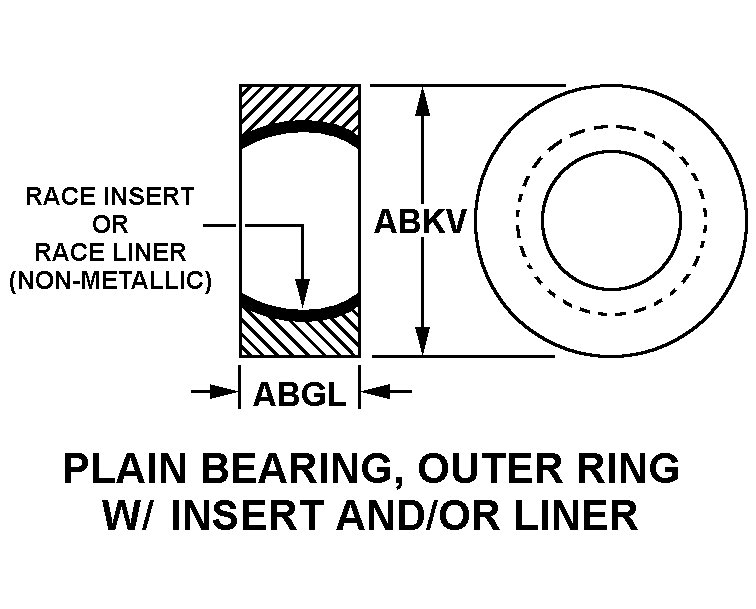

PLAIN BEARING, OUTER RING WITH INSERT AND/OR LINER
Cross Reference | NSN 3120-01-449-0893
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LJS1224 | 09455 | RBC TRANSPORT DYNAMICS CORP.DIV RBC TRANSPORT DYNAMICS |
Technical Data | NSN 3120-01-449-0893
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN BEARING, OUTER RING WITH INSERT AND/OR LINER |
| WIDTH | 0.7500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED BACKING; OP TEMP M250 TO P200 DEG F; MAX SPEED 20 FPM |
