NSN 3120-01-461-0284
Part Details | SELF-ALIGNING PLAIN BEARING
3120-01-461-0284 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Alternate Parts: 102500451, 10250045-1, 102500451, 10250045-1, 102500451, 10250045-1, 035953201, 03-595-3201, 102500451, 10250045-1, 3120-01-461-0284, 01-461-0284, 3120014610284, 014610284
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 24, 1998 | 01-461-0284 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
REFERENCE DRAWINGS & PICTURES

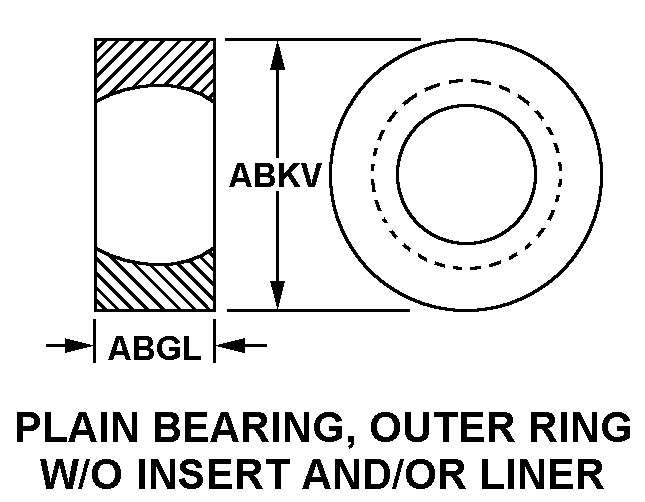

PLAIN BEARING, OUTER RING WITHOUT INSERT AND/OR LINER
Cross Reference | NSN 3120-01-461-0284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10250045-1 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| 10250045-1 | 45934 | ONTIC ENGINEERING AND MANUFACTURING,INC. |
| 10250045-1 | 09455 | RBC TRANSPORT DYNAMICS CORP.DIV RBC TRANSPORT DYNAMICS |
| 03-595-3201 | 09455 | RBC TRANSPORT DYNAMICS CORP.DIV RBC TRANSPORT DYNAMICS |
| 10250045-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3120-01-461-0284
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN BEARING, OUTER RING WITHOUT INSERT AND/OR LINER |
| WIDTH | 1.7480 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.9995 INCHES MINIMUM AND 2.0005 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 356000 POUNDS |
| SPECIAL FEATURES | BALL HAS CHROME FINISH; 6 DEGREES MINIMUM ANGULAR MISALIGNMENT; OUTSIDE DIA. 3.1865 IN. MIN. AND 3.1875 IN. MAX. |
| END ITEM IDENTIFICATION | PART NUMBER 11450160 |
