NSN 3120-01-470-8316
Part Details | CAM FOLLOWER PLAIN BEARING
3120-01-470-8316 A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also CAM FOLLOWER, NEEDLE BEARING.
Alternate Parts: KRP149603TC, KRP149603T, 3120-01-470-8316, 01-470-8316, 3120014708316, 014708316
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 11, 2000 | 01-470-8316 | 42390 ( BEARING, PLAIN, CAM FOLLOWER ) |

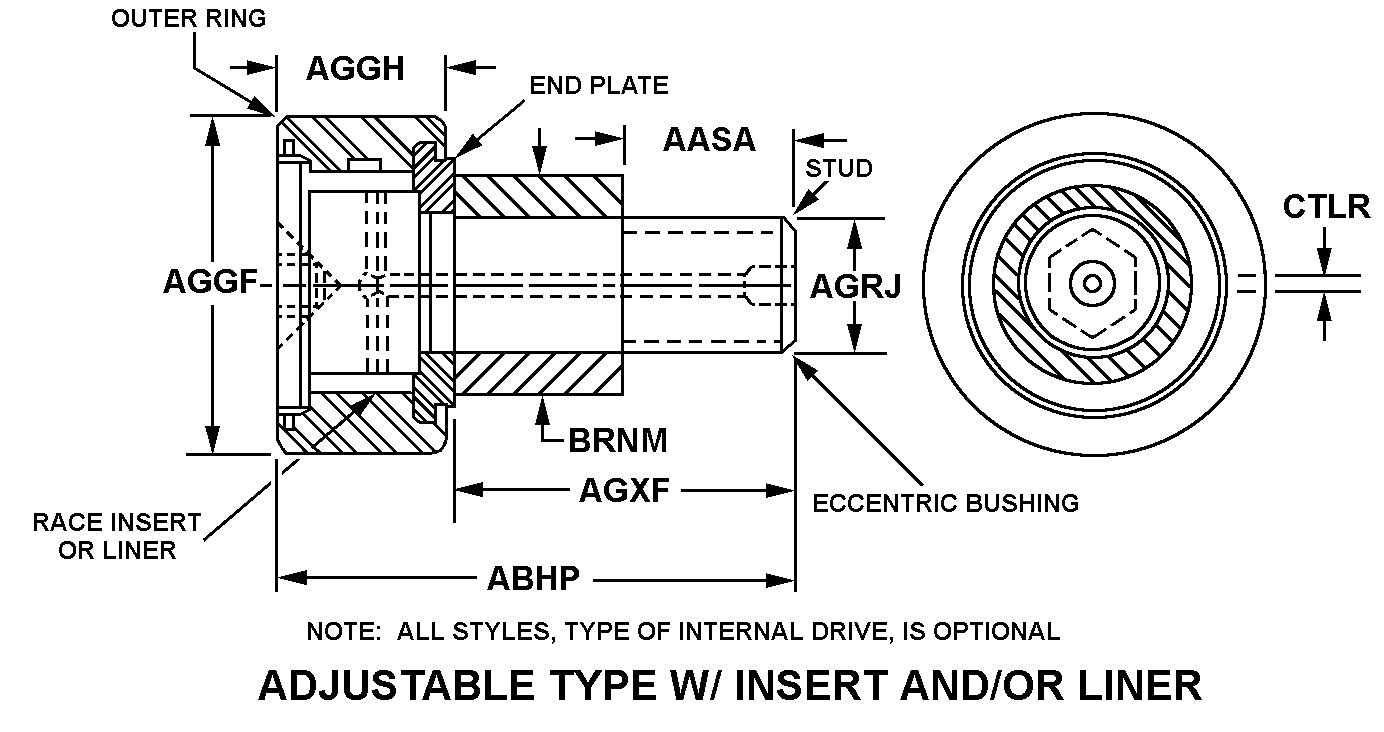

REFERENCE DRAWINGS & PICTURES
EXTERNALLY THREADED
ADJUSTABLE TYPE W/INSERT AND/OR LINER
Cross Reference | NSN 3120-01-470-8316
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KRP149603TC | 50632 | KAMATICS CORPORATION |
| KRP149603T | 50632 | KAMATICS CORPORATION |
Technical Data | NSN 3120-01-470-8316
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ADJUSTABLE TYPE W/INSERT AND/OR LINER |
| OVERALL LENGTH | 1.0390 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.9554 INCHES MINIMUM AND 0.9567 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3540 INCHES NOMINAL |
| STUD LENGTH | 0.6772 INCHES MINIMUM AND 0.6850 INCHES MAXIMUM |
| CAM END DIAMETER | 0.2947 INCHES MINIMUM AND 0.2953 INCHES MAXIMUM |
| SHANK STYLE | EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | MJ |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | RADIAL ULTIMATE LOAD: 2320 LBS; MAX OPERTAING LOAD: 1624 LBS; MAX OPERATING TEMPERATURE: 626 DEG F |
