NSN 4720-01-604-5162
Part Details | NONMETALLIC TUBING
4720-01-604-5162 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).
Alternate Parts: ST7M289060410, ST7M289-06-0410, HS102060410, HS102-06-0410, CRN1689060410, CRN1689-06-0410, 4720-01-604-5162, 01-604-5162, 4720016045162, 016045162
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | APR 06, 2012 | 01-604-5162 | 31934 ( TUBING, NONMETALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

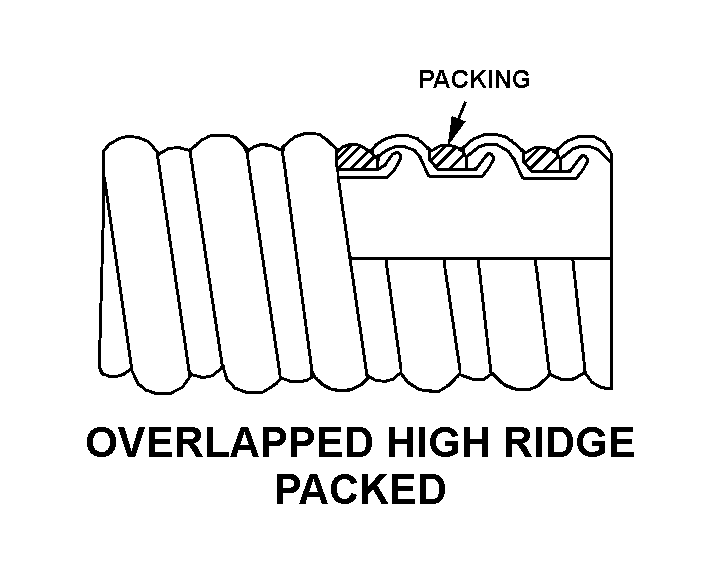

OVERLAPPED HIGH RIDGE PACKED
Cross Reference | NSN 4720-01-604-5162
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST7M289-06-0410 | 76301 | BOEING COMPANY, THEDBA BOEING |
| HS102-06-0410 | 24984 | HYDRAFLOW |
| CRN1689-06-0410 | 05593 | ICORE INTERNATIONAL, INC. |
Technical Data | NSN 4720-01-604-5162
| Characteristic | Specifications |
|---|---|
| MEASURING METHOD AND LENGTH | RL41.500 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| INSIDE SURFACE CONDITION | CONVOLUTED |
| INNER CONVEYING TUBE STYLE | OVERLAPPED HIGH RIDGE PACKED |
| END ITEM IDENTIFICATION | FWD FUSE 4 5 |
| INSIDE DIAMETER | 0.289 INCHES MINIMUM |
| OUTSIDE DIAMETER | 0.375 INCHES MAXIMUM |
