NSN 4720-01-644-5728
Part Details | AIR DUCT HOSE
4720-01-644-5728 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Alternate Parts: M32107223625 MIDNT BL, M32107/2-23625 MIDNT BL, M32107223625 MIDNT BL, M32107/2-23625 MIDNT BL, MILPRF321072, MIL-PRF-32107/2, 4720-01-644-5728, 01-644-5728, 4720016445728, 016445728
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 12, 2015 | 01-644-5728 | 11116 ( HOSE, AIR DUCT ) |
REFERENCE DRAWINGS & PICTURES

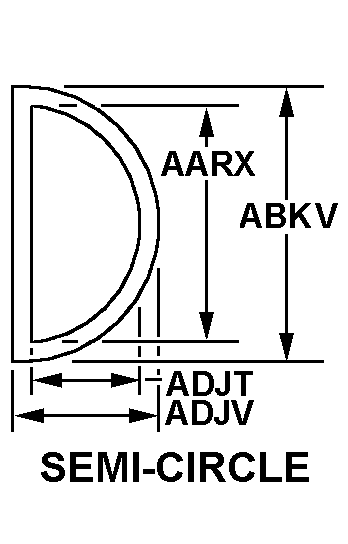

SEMI-CIRCLE
Cross Reference | NSN 4720-01-644-5728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M32107/2-23625 MIDNT BL | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| M32107/2-23625 MIDNT BL | 1NNH2 | KE FIBERTEC NORTH AMERICA INC |
| MIL-PRF-32107/2 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4720-01-644-5728
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | SEMI-CIRCLE |
| SPECIAL FEATURES | LENGTH: 12 INCHES LONG; DIRECTION OF OPENING: 4 AND 8 O'CLOCK; TYPE OF OPENING: SLOT; PERMEABILITY RANGE: 40; COLOR: MIDNIGHT BLUE |
| END ITEM IDENTIFICATION | DUCTS, AIR, T |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HOSE, AIR DUCT STRAIGHT, HALF-ROUND |
