NSN 4730-00-975-4419
Part Details | TUBE UNION
4730-00-975-4419 A straight tube fitting capable of being taken apart and reassembled. It permits disconnection and connection of tubing or tube fittings without disturbing the end connections or the rest of the line.
Alternate Parts: 733 34IN, 733 3-4IN, 4730-00-975-4419, 00-975-4419, 4730009754419, 009754419
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1962 | 00-975-4419 | 03788 ( UNION, TUBE ) |
REFERENCE DRAWINGS & PICTURES

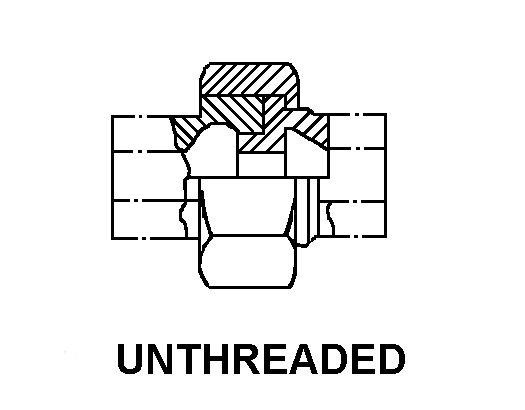

UNTHREADED
Cross Reference | NSN 4730-00-975-4419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 733 3-4IN | 12168 | NORTHERN INDIANA BUSINESS SERVICES |
Technical Data | NSN 4730-00-975-4419
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNTHREADED |
| NOMINAL OVERALL LENGTH | 1.312 INCHES |
| SEAT TYPE | GASKET |
| COUPLING FLANGE SHAPE | HEXAGON |
| REDUCER TYPE | CONCENTRIC |
| SPECIAL FEATURES | BOTH TUBING WALL THICKNESS AT EACH END CAN BE COMPROMISED |
