NSN 4730-01-342-4140
Part Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-01-342-4140 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Alternate Parts: 726607015, 7266-0701-5, 4PC1FM2A, 4730-01-342-4140, 01-342-4140, 4730013424140, 013424140
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 22, 1991 | 01-342-4140 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
REFERENCE DRAWINGS & PICTURES

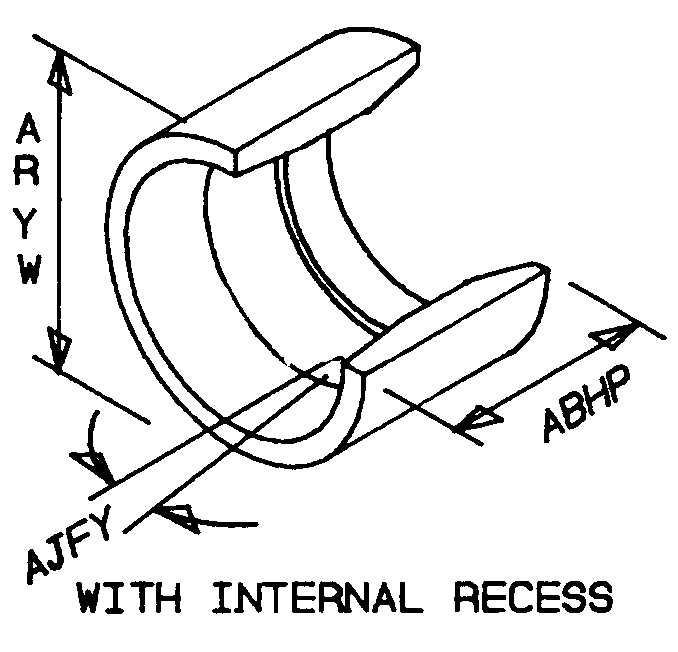

WITH INTERNAL RECESS
Cross Reference | NSN 4730-01-342-4140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7266-0701-5 | 24161 | GATES CORP THEDBA GATES RUBBER CO THE |
| 4PC1FM2A | 24161 | GATES CORP THEDBA GATES RUBBER CO THE |
Technical Data | NSN 4730-01-342-4140
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | WITH INTERNAL RECESS |
| OVERALL LENGTH | 1.200 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
| SLEEVE OUTSIDE DIAMETER | 0.830 INCHES NOMINAL |
| SPECIAL FEATURES | 5000PSI PCIF-M FOR MEGAFLES HOSES ONLY |
