NSN 4730-01-396-5075
Part Details | TUBE FITTING CLINCH SLEEVE
4730-01-396-5075 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Alternate Parts: 31801182, 3180118-2, 3180118, 4730-01-396-5075, 01-396-5075, 4730013965075, 013965075
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | SEP 21, 1994 | 01-396-5075 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |
REFERENCE DRAWINGS & PICTURES

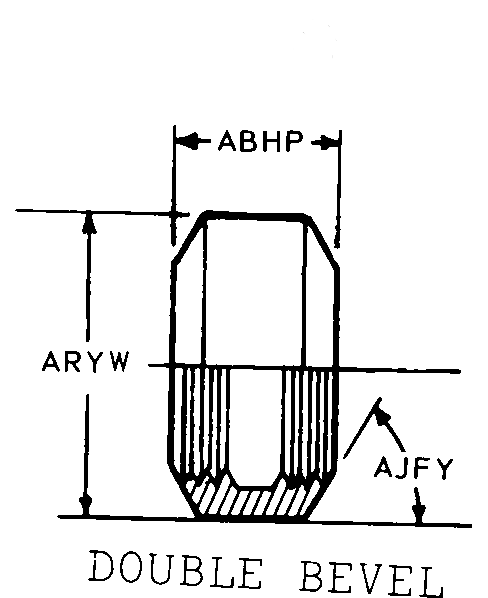

DOUBLE BEVEL
Cross Reference | NSN 4730-01-396-5075
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3180118-2 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 3180118 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 4730-01-396-5075
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | DOUBLE BEVEL |
| OVERALL LENGTH | 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 32.0 |
| SLEEVE OUTSIDE DIAMETER | 0.355 INCHES MINIMUM AND 0.356 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | C-17A AIRCRAFT |
