NSN 4730-01-414-5562
Part Details | TUBE COUPLING
4730-01-414-5562 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Alternate Parts: G5517641, G551764-1, G5517641, G551764-1, G5517641, G551764-1, STYLE 6062E, STYLE 606-2-E, 4730-01-414-5562, 01-414-5562, 4730014145562, 014145562
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 09, 1995 | 01-414-5562 | 06078 ( COUPLING, TUBE ) |
REFERENCE DRAWINGS & PICTURES

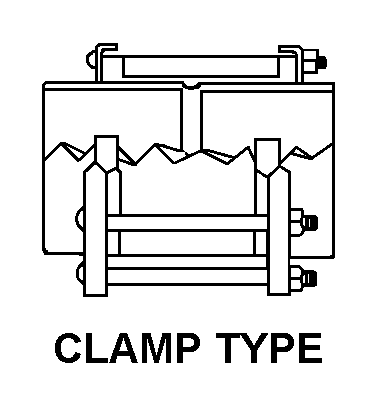

CLAMP TYPE
Cross Reference | NSN 4730-01-414-5562
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G551764-1 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| G551764-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| G551764-1 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| STYLE 606-2-E | 79154 | VICTAULIC COMPANY OF AMERICA INCDBA VICTAULIC COMPANY OF AMERICA |
Technical Data | NSN 4730-01-414-5562
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP TYPE |
| NOMINAL OVERALL LENGTH | 4.630 INCHES |
| END ITEM IDENTIFICATION | MILSTAR SYSTEM |
