NSN 4730-01-424-7395
Part Details | TUBE COUPLING NUT
4730-01-424-7395 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Alternate Parts: 1602AS2291, 1602AS229-1, 1602AS229, 4730-01-424-7395, 01-424-7395, 4730014247395, 014247395
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | FEB 03, 1996 | 01-424-7395 | 03859 ( NUT, TUBE COUPLING ) |

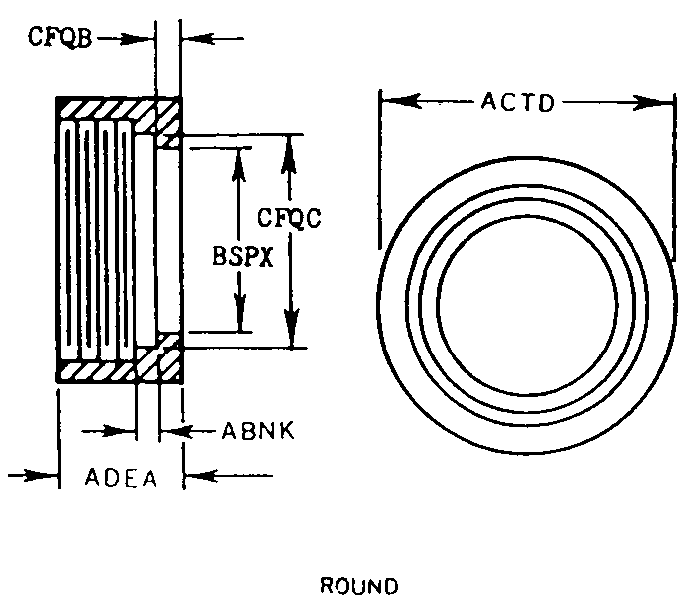

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 4730-01-424-7395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1602AS229-1 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 1602AS229 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
Technical Data | NSN 4730-01-424-7395
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ACME |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD QUANTITY PER INCH | 4 |
| THREAD CLASS | A2A |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | ROUND |
| SHOULDER WIDTH | 0.125 INCHES NOMINAL |
| NUT DIAMETER | 2.187 INCHES NOMINAL |
| NUT HEIGHT | 1.000 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.320 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.288 INCHES NOMINAL |
| SHOULDER SEAT DIAMETER | 1.875 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.000 INCHES |
| SPECIAL FEATURES | CLEANED FOR OXYGEN SERVICE IN ACCORDANCE WITH MIL-I-52211,METHOD A,CLASS B. |
