NSN 4820-01-318-5431
Part Details | TEMPERATURE REGULATING VALVE
4820-01-318-5431 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Alternate Parts: 40176108, 40176-108, 40176 ASSY 40176108, 40176 ASSY 40176-108, 40176, 4820-01-318-5431, 01-318-5431, 4820013185431, 013185431
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | APR 19, 1990 | 01-318-5431 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

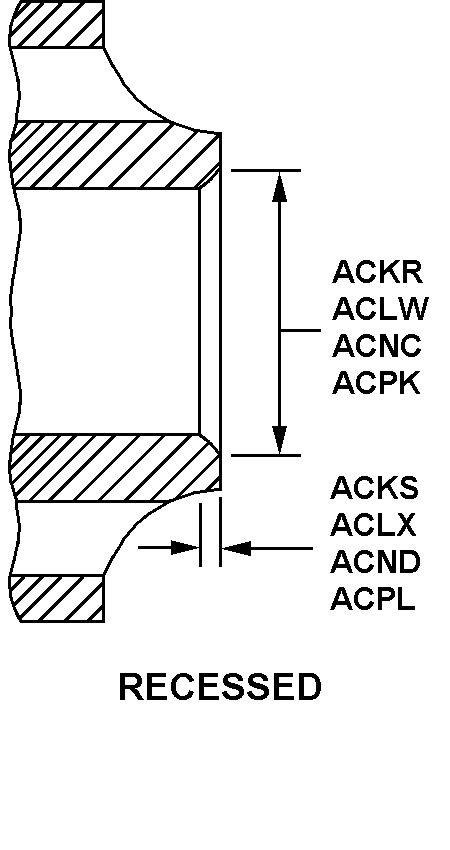

RECESSED
ROUND W/ BOLT HOLES
RECESSED
ROUND W/ BOLT HOLES
ROUND W/ BOLT HOLES
Cross Reference | NSN 4820-01-318-5431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40176-108 | 55378 | TRAC REGULATORS INC |
| 40176 ASSY 40176-108 | 55378 | TRAC REGULATORS INC |
| 40176 | 55378 | TRAC REGULATORS INC |
Technical Data | NSN 4820-01-318-5431
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316 |
| SPECIAL FEATURES | VALVE SIZE 2.500 IN. |
| SEAT MATERIAL | BRONZE |
| STEM MATERIAL | STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316 |
| FLOW CONTROL DEVICE | PISTON, SPRING LOADED |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316 |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | RECESSED FLANGE |
| FIRST END STYLE DESIGNATOR | RECESSED |
| FIRST END RECESS DIAMETER | 2.750 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | ROUND W/ BOLT HOLES |
| FIRST END BOLT HOLE QUANTITY | 6 |
| FIRST END FLANGE OUTSIDE DIAMETER | 6.125 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.531 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 5.000 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU |
| FACE TO FACE DISTANCE | 8.750 INCHES NOMINAL |
