NSN 4820-01-371-1286
Part Details | SADDLE VALVE
4820-01-371-1286 A valve with an outlet end connection, straight thru or at an angle. The flow of liquid or gases may be controlled by the action of stem which lifts the disks perpendicularly off the center axis of its seat or by rotation of a suitable ported seat. This valve has a connection facility which is saddled over a line and bolted, may be line drilled or line self piercing.
Alternate Parts: 998051024, 998-0510-24, 998051024, 998-0510-24, 4820-01-371-1286, 01-371-1286, 4820013711286, 013711286
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | FEB 06, 1993 | 01-371-1286 | 35934 ( VALVE, SADDLE ) |
REFERENCE DRAWINGS & PICTURES

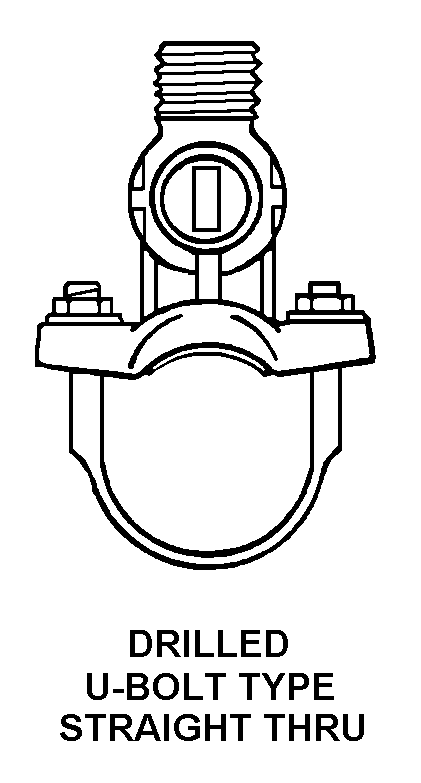

DRILLED U-BOLT TYPE STRAIGHT THRU
Cross Reference | NSN 4820-01-371-1286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 998-0510-24 | 14569 | COPELAND CORP |
| 998-0510-24 | 5L3D4 | EMERSON CLIMATE TECHNOLOGIES, INC.DBA DESIGN SERVICES NETWORK |
Technical Data | NSN 4820-01-371-1286
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DRILLED U-BOLT TYPE STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
