NSN 4820-01-372-8101
Part Details | EXPANSION VALVE
4820-01-372-8101 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 257B14S, 257B-14S, 257B, 4820-01-372-8101, 01-372-8101, 4820013728101, 013728101
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAR 19, 1993 | 01-372-8101 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

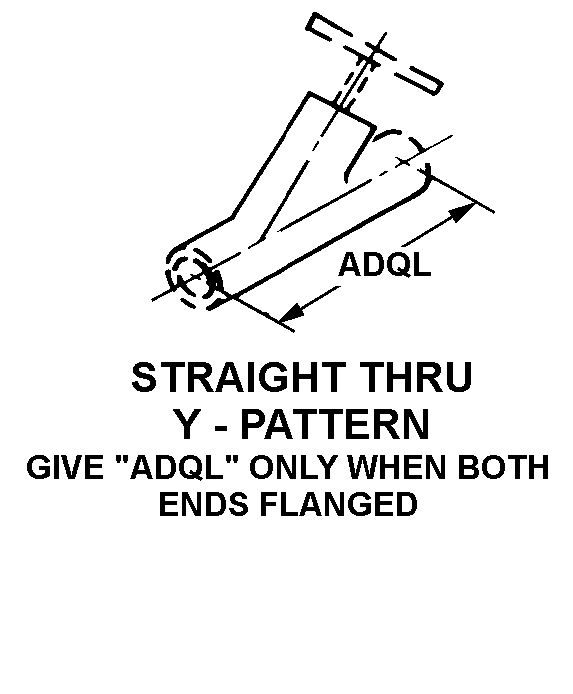

STRAIGHT THRU Y-PATTERN GIVE "ADQL" ONLY WHEN BOTH ENDS FLANGED
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-01-372-8101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 257B-14S | 58553 | SUPERIOR VALVE CO |
| 257B | 58553 | SUPERIOR VALVE CO |
Technical Data | NSN 4820-01-372-8101
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU Y-PATTERN GIVE "ADQL" ONLY WHEN BOTH ENDS FLANGED |
| FLOW CONTROL DEVICE | H ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.875 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
