NSN 4820-01-389-7756
Part Details | TEMPERATURE REGULATING VALVE
4820-01-389-7756 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Alternate Parts: 11248D10, 1-1248-D10, I1284D10, I-1284-D10, 4820-01-389-7756, 01-389-7756, 4820013897756, 013897756
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 03, 1994 | 01-389-7756 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

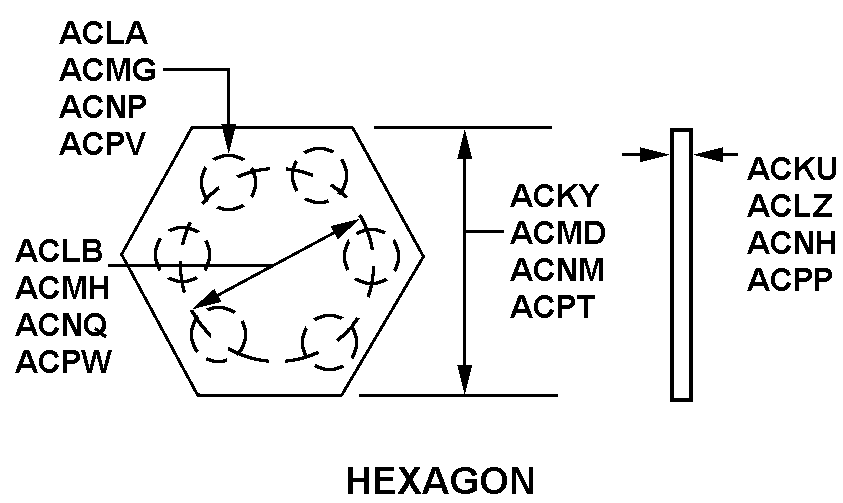

HEXAGON W/ BOLT HOLES
PLAIN
HEXAGON W/ BOLT HOLES
PLAIN
PLAIN
Cross Reference | NSN 4820-01-389-7756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-1248-D10 | 73475 | SCHNEIDER ELECTRIC SYSTEMS USA, INC. |
| I-1284-D10 | 73475 | SCHNEIDER ELECTRIC SYSTEMS USA, INC. |
Technical Data | NSN 4820-01-389-7756
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END FLANGE SHAPE STYLE | HEXAGON W/ BOLT HOLES |
