NSN 4820-01-420-8952
Part Details | NEEDLE VALVE STEM
4820-01-420-8952 A metallic, needle shaped item having a one-piece stem threaded for securing to, or positioning into, a mating part. The point may be of various angles or shapes, such as conical or tapered, to correspond with the mating seat. The item is designed for the fine control flow or restriction of liquids or gases in a given system. It may be provided with a knurled head for rotation by thumbs and fingers, or be driven with either a wrench, handle, or inserted driver. Excludes VALVE, FUEL-AIR MIXTURE CONTROL, AUTOMATIC.
Alternate Parts: 30006P, 3000-6-P, 4820-01-420-8952, 01-420-8952, 4820014208952, 014208952
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 27, 1995 | 01-420-8952 | 28686 ( STEM, NEEDLE VALVE ) |
REFERENCE DRAWINGS & PICTURES

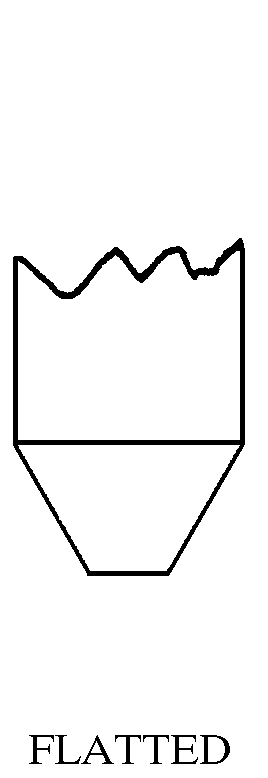

FLATTED
Cross Reference | NSN 4820-01-420-8952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3000-6-P | 98678 | GENERANT COMPANY, INC. |
Technical Data | NSN 4820-01-420-8952
| Characteristic | Specifications |
|---|---|
| VALVE SIZE FOR WHICH DESIGNED | 0.187 INCHES |
| STEM ACTUATING END TYPE | |
| LARGEST OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| DISK STYLE | FLATTED |
| END ITEM IDENTIFICATION | CONTROL CONSOLE; P/N MS496-06782 ONBOARD WMEC 210A FT COAST GUARD VESSELS |
| SPECIAL FEATURES | OPEN, CLOSE 2 WAY VALVE; PRESURE TO 200 PSI; CONNECTION POINT 1 FEMALE 1 MALE; STANDARD BRASS WITH STAINLESS STEEL STEM |
