NSN 5120-00-986-7204
Part Details | SPANNER WRENCH
5120-00-986-7204 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 5120H37005, 5120H37-005, PWA2745, 5120-00-986-7204, 00-986-7204, 5120009867204, 009867204
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1962 | 00-986-7204 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

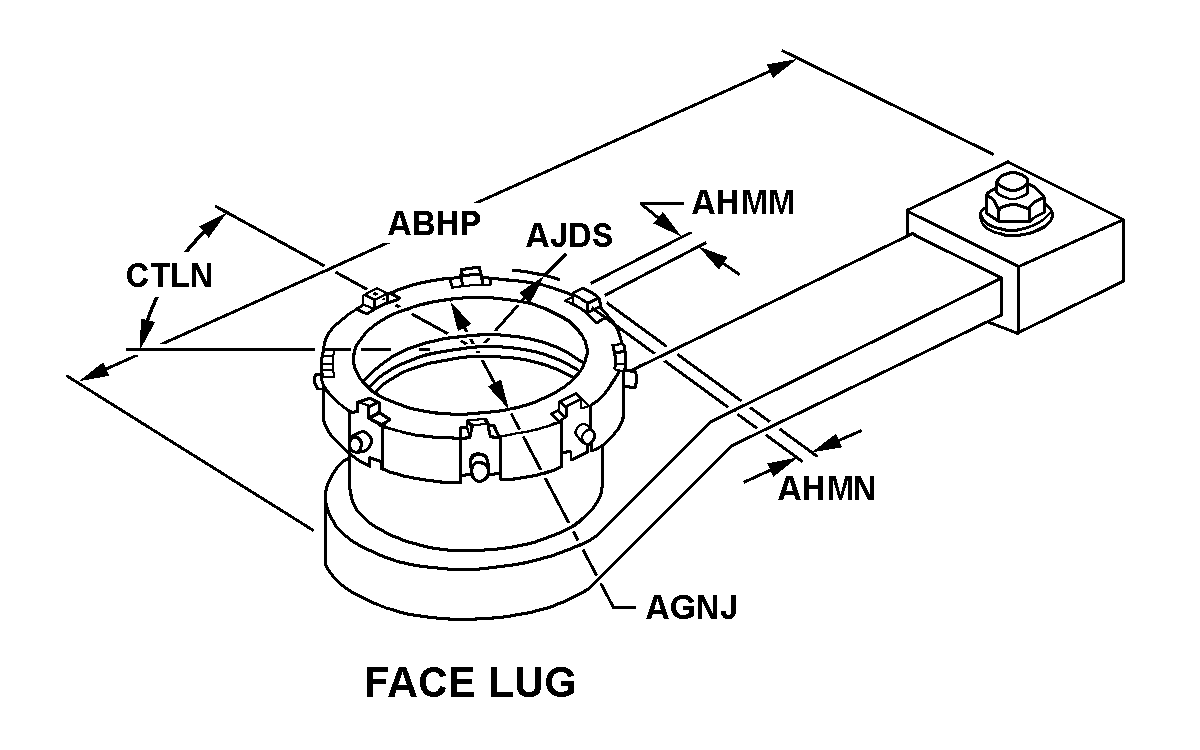

FACE LUG
Cross Reference | NSN 5120-00-986-7204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120H37-005 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| PWA2745 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-986-7204
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE LUG |
| OPENING DIAMETER | 5.875 INCHES NOMINAL |
| LUG WIDTH | 0.469 INCHES NOMINAL |
| LUG THICKNESS | 0.490 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| ANGLE BETWEEN LUGS | 45.0 DEGREES NOMINAL |
| FUNCTIONAL DESCRIPTION | TO REMOVE PROPELLER SHAFT THRUST BEARING NUT |
