NSN 5120-01-020-1202
Part Details | SPANNER WRENCH
5120-01-020-1202 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA53360, 5120-01-020-1202, 01-020-1202, 5120010201202, 010201202
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 25, 1976 | 01-020-1202 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

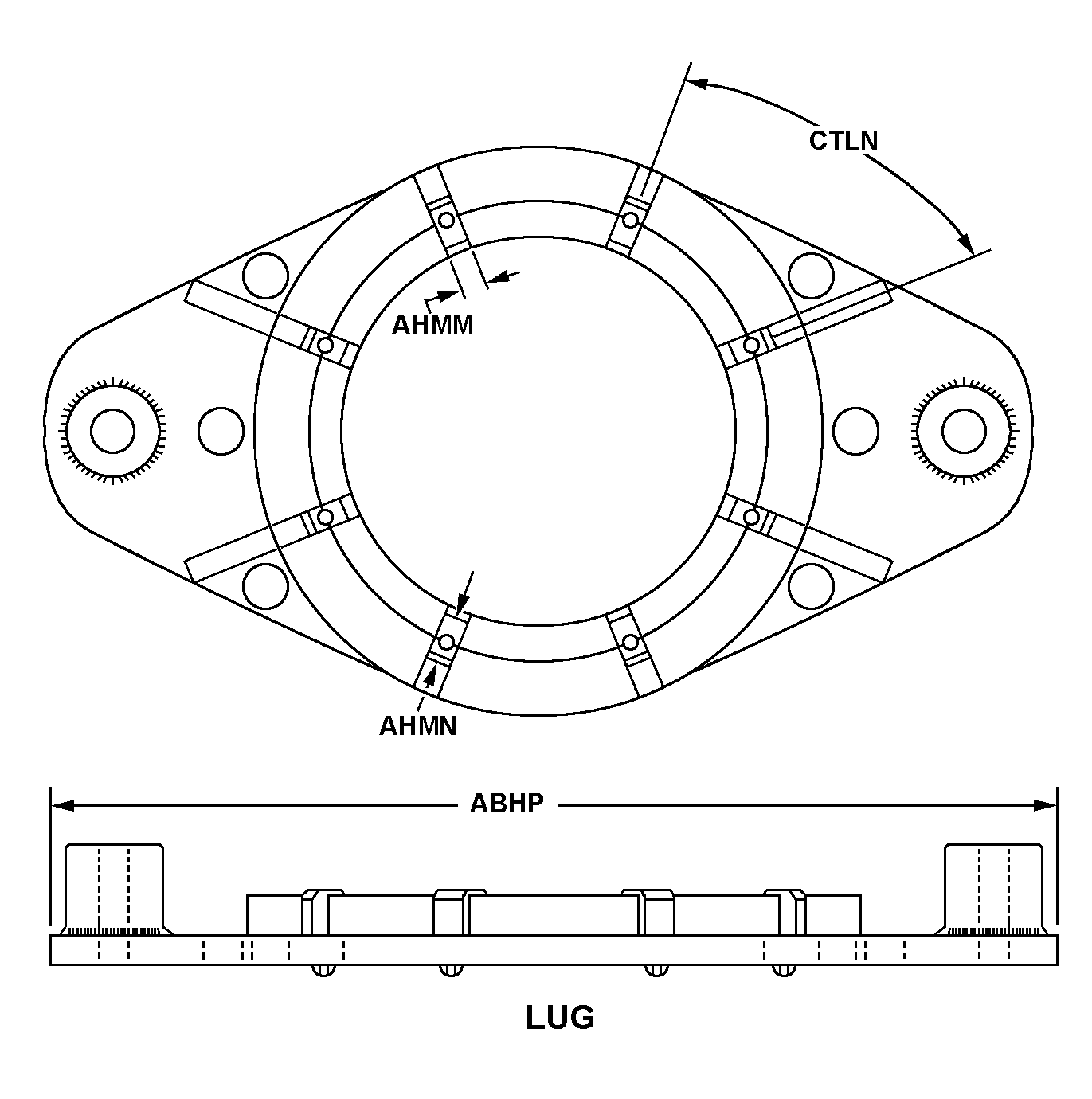

LUG
Cross Reference | NSN 5120-01-020-1202
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA53360 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-01-020-1202
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| END ITEM IDENTIFICATION | F100-PW-100 ACFT ENGINE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | U/O NO.5 BEARING SEAL PLATE RETAINING NUT |
