NSN 5120-01-609-7104
Part Details | PRY BAR
5120-01-609-7104 Before using, refer to Reference Drawing Group AG.
Alternate Parts: MHDTP, MH-DT-P, 5120-01-609-7104, 01-609-7104, 5120016097104, 016097104
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | AUG 01, 2012 | 01-609-7104 | 03835 ( BAR, PRY ) |
REFERENCE DRAWINGS & PICTURES

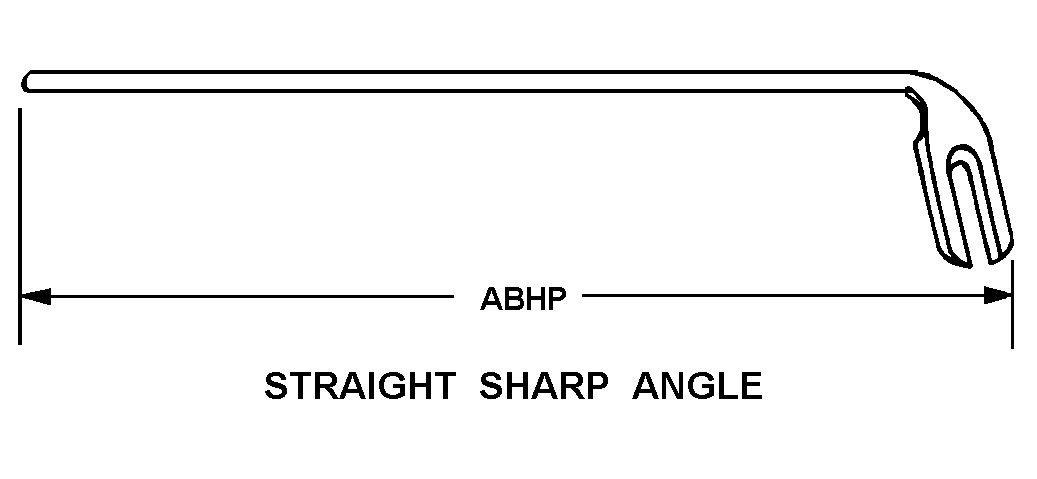

STRAIGHT SHARP ANGLE
Cross Reference | NSN 5120-01-609-7104
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MH-DT-P | 6L3Z0 | BCM INC |
Technical Data | NSN 5120-01-609-7104
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHARP ANGLE |
| OVERALL LENGTH | 15.875 INCHES MINIMUM AND 22.875 INCHES MAXIMUM |
| MATERIAL | STEEL |
| SPECIAL FEATURES | MODEL NUMBER MH-DT-P, HALLIGAN HEAD WITH A PRYING ADZ,FLAT STRIKING FACE TO ENHANCE FIRST HIT RESPONSE, HEAD IS DROP FORGED FROM HIGH ALLOY STEEL,COLLET LOCKING CHUCK PROVIDES 360 DEGREES OF GRIPPING FORCE AROUNF SHAFT,PREMIUM QUALITY T1-6AI-4V ALPHA BETA TITANIUM SHAFT,LANYARD CONNECTION IN THE END CAP. |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HALLIGAN,MILITARY |
