NSN 5120-01-611-8076
Part Details | WESTERN PATTERN SCOOP
5120-01-611-8076 A square pointed hand tool of open (hollow) back construction having a minimum blade width more than 13-1/2 inches (342.9 mm). Refer to Reference Drawing Group BG before using item name.
Alternate Parts: 512000NIB0023, 5120-00-NIB-0023, GS18, 5120-01-611-8076, 01-611-8076, 5120016118076, 016118076
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | SEP 25, 2012 | 01-611-8076 | 05410 ( SCOOP, WESTERN PATTERN ) |
REFERENCE DRAWINGS & PICTURES

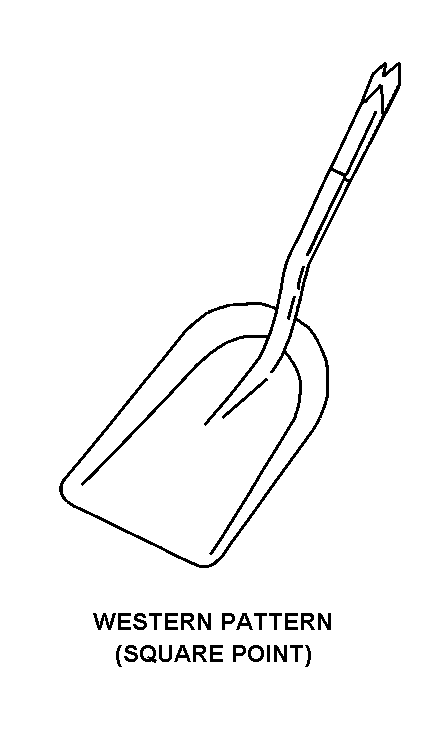

WESTERN PATTERN (SQUARE POINT)
Cross Reference | NSN 5120-01-611-8076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120-00-NIB-0023 | 3D7U8 | KEYSTONE VOCATIONAL SERVICES, INC. |
| GS18 | 86951 | SEYMOUR MANUFACTURING CO INC |
Technical Data | NSN 5120-01-611-8076
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | LONG STYLE |
| DIGGING IMPLEMENT STYLE | WESTERN PATTERN (SQUARE POINT) |
| HANDLE LENGTH | 51.000 INCHES |
| SIZE DESIGNATOR | 12 |
| BLADE LENGTH | 19.000 INCHES NOMINAL |
| BLADE WIDTH | 14.250 INCHES NOMINAL |
| SPECIAL FEATURES | YELLOW HANDLE WITH CUSHION GRIP; ABS PLASTIC BLADE |
