NSN 5120-01-616-1306
Part Details | MECHANICAL JACK HANDLE
5120-01-616-1306
Alternate Parts: 500180, 43012623, 5120-01-616-1306, 01-616-1306, 5120016161306, 016161306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | FEB 03, 2013 | 01-616-1306 | 60573 ( HANDLE, MECHANICAL JACK ) |

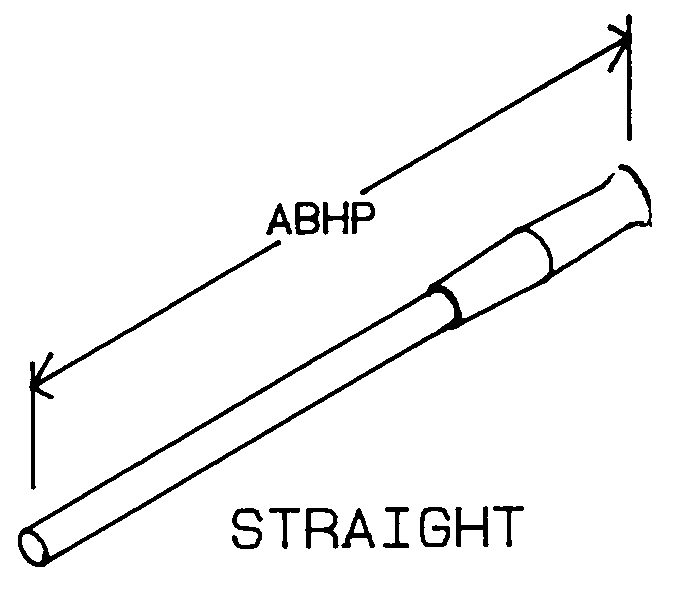

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 5120-01-616-1306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500180 | 5SMM4 | CEQUENT CONSUMER PRODUCTS, INC. |
| 43012623 | 0F875 | GENERAL DYNAMICS ORDNANCE ANDTACTICAL SYSTEMS, INC. |
Technical Data | NSN 5120-01-616-1306
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| MOUNTING METHOD | SLIPS-ON AND SIDE SETSCREW |
| FEATURES PROVIDED | HANDLE ROTATING FEATURE AND SCREW |
| SPECIAL FEATURES | BULLDOG TOP WIND TRAILER JACK CRANK; THIS HANDLE WILL FIT ON TOP WIND 150, 170, AND 700 SERIES TRAILER JACKS; 6-3/4 IN. RADIUS W/RED BULLDOG KNOB FOR 750-5000 LBS (TW/GTW |
