NSN 5120-01-617-7209
Part Details | SPANNER WRENCH
5120-01-617-7209 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: AS6018 TY3CL2, AFS484B.170, AS6018, 5120-01-617-7209, 01-617-7209, 5120016177209, 016177209
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 01, 2013 | 01-617-7209 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

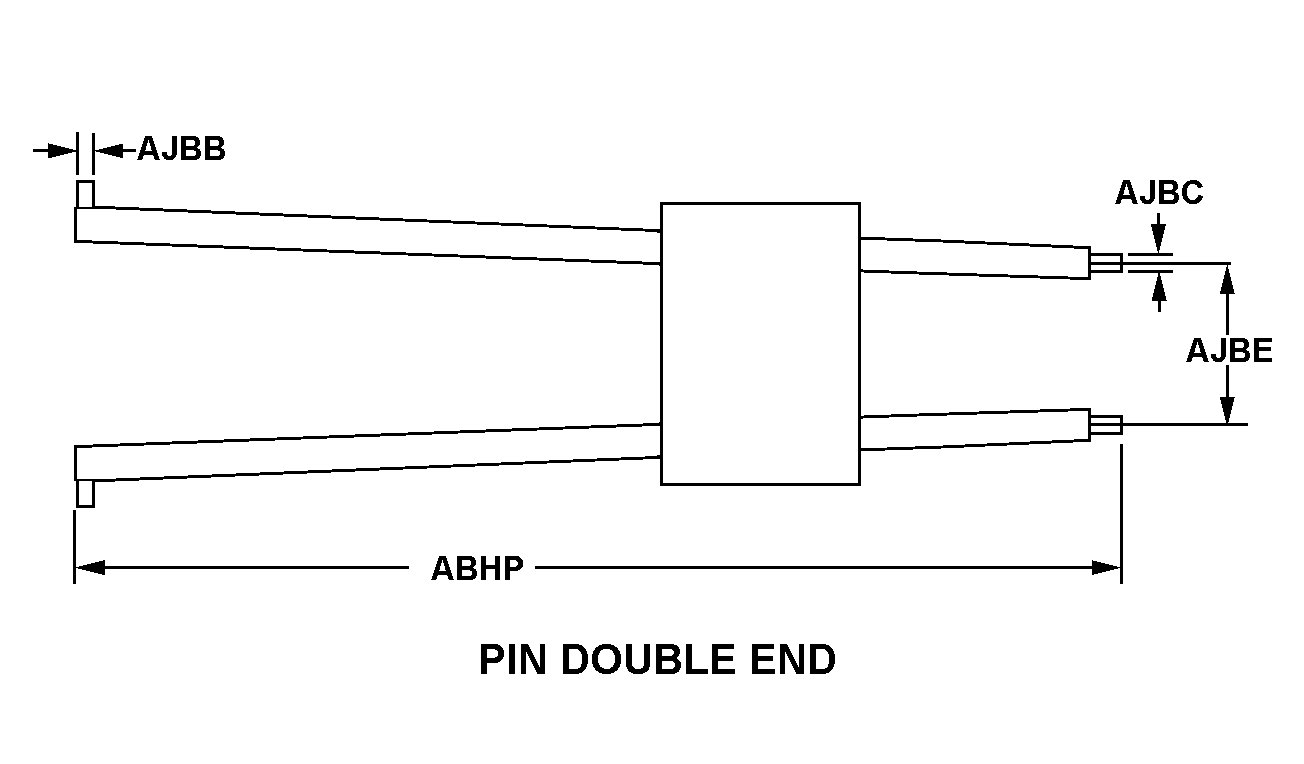

PIN DOUBLE END
Cross Reference | NSN 5120-01-617-7209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS6018 TY3CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| AFS484B.170 | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
| AS6018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 5120-01-617-7209
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN DOUBLE END |
| OVERALL LENGTH | 9.490 INCHES NOMINAL |
| LARGE END PIN DIAMETER | 1.700 INCHES NOMINAL |
| SMALL END PIN DIAMETER | 1.70 INCHES NOMINAL |
| SMALL END CENTER TO CENTER DISTANCE BETWEEN PINS | 4.880 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 81343-SAE AS6018 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2 CLASS |
| SUPPLEMENTARY FEATURES | USE WITH PART NUMBER AFS484B.156 |
