NSN 5120-01-618-7615
Part Details | MECHANICAL PULLER
5120-01-618-7615 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Alternate Parts: TM12PLR, 5120-01-618-7615, 01-618-7615, 5120016187615, 016187615
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAY 05, 2013 | 01-618-7615 | 18913 ( PULLER, MECHANICAL ) |
REFERENCE DRAWINGS & PICTURES

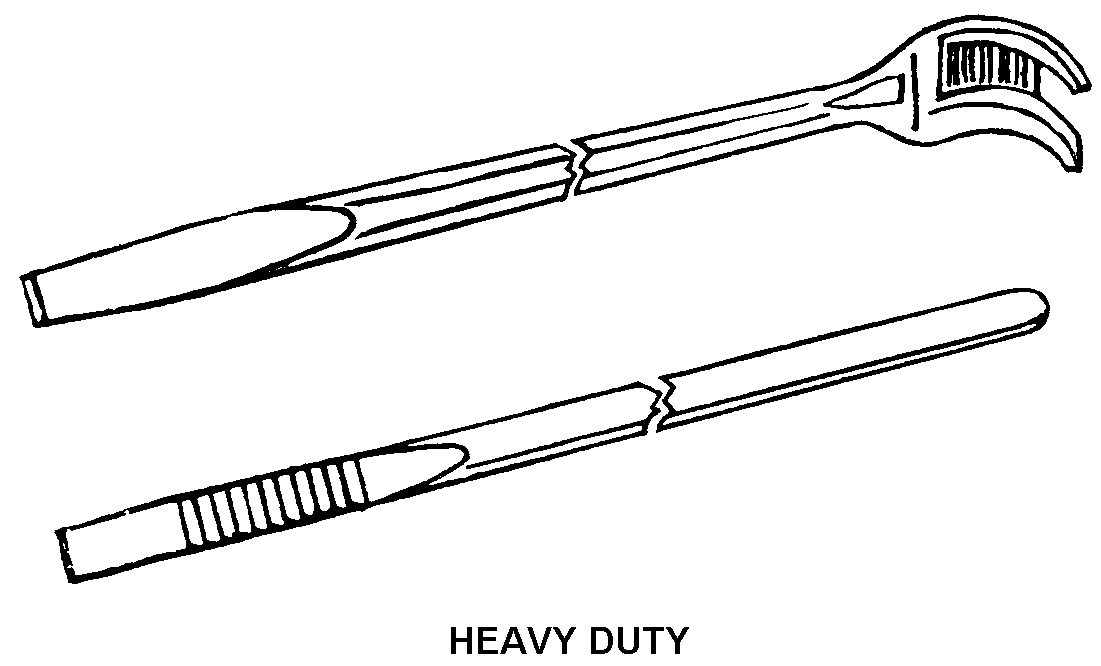

HEAVY DUTY
Cross Reference | NSN 5120-01-618-7615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TM12PLR | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
Technical Data | NSN 5120-01-618-7615
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEAVY DUTY |
| SPECIAL FEATURES | USED TO R&R CRADLE ASSEMBLY NUT FROM AXLE ASSEMBLY ON 120MM RIFLE BORE |
