NSN 5120-01-619-4320
Part Details | SOCKET WRENCH SOCKET
5120-01-619-4320 An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint.
Alternate Parts: 80375262134X31, 803-7526213-4X-31, 5120-01-619-4320, 01-619-4320, 5120016194320, 016194320
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAY 30, 2013 | 01-619-4320 | 03518 ( SOCKET, SOCKET WRENCH ) |
REFERENCE DRAWINGS & PICTURES

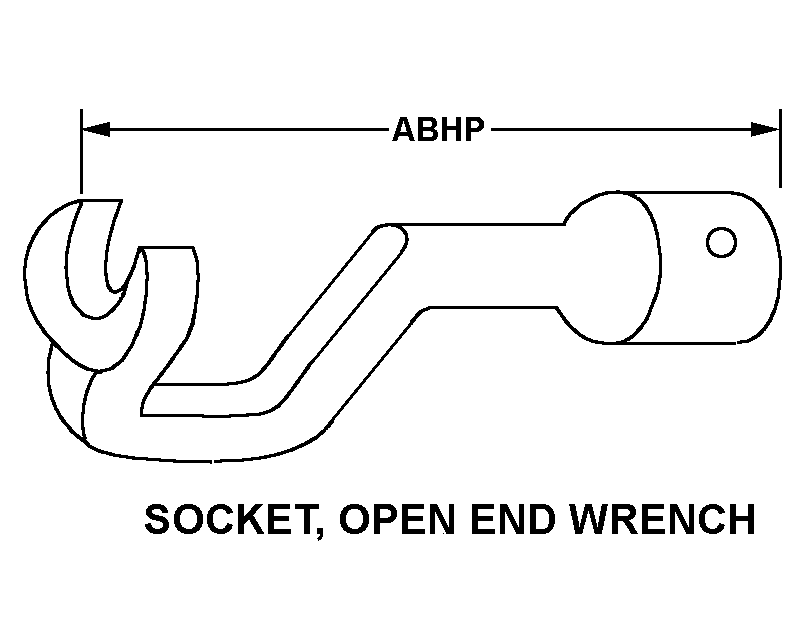

SOCKET, OPEN END WRENCH
Cross Reference | NSN 5120-01-619-4320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803-7526213-4X-31 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5120-01-619-4320
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOCKET, OPEN END WRENCH |
| OVERALL LENGTH | 6.750 INCHES MINIMUM AND 7.000 INCHES MAXIMUM |
| SUPPLEMENTARY FEATURES | FABRICATED FROM 3/4 SQUARE DRIVE 1 -13/16 12 PT. SOCKET AND 2 INCH SCHEDULE 40 304 PIPE. SOCKET IS CUT 1 -1/2INCHES FROM END TO PREVENT WELD BEAD FROM INTERFERRING WITH RETAINING RING |
