Part Details | TORQUE WRENCH

5120-01-621-4468 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.

Alternate Parts: 580571, 5120-01-621-4468, 01-621-4468, 5120016214468, 016214468

REFERENCE DRAWINGS & PICTURES

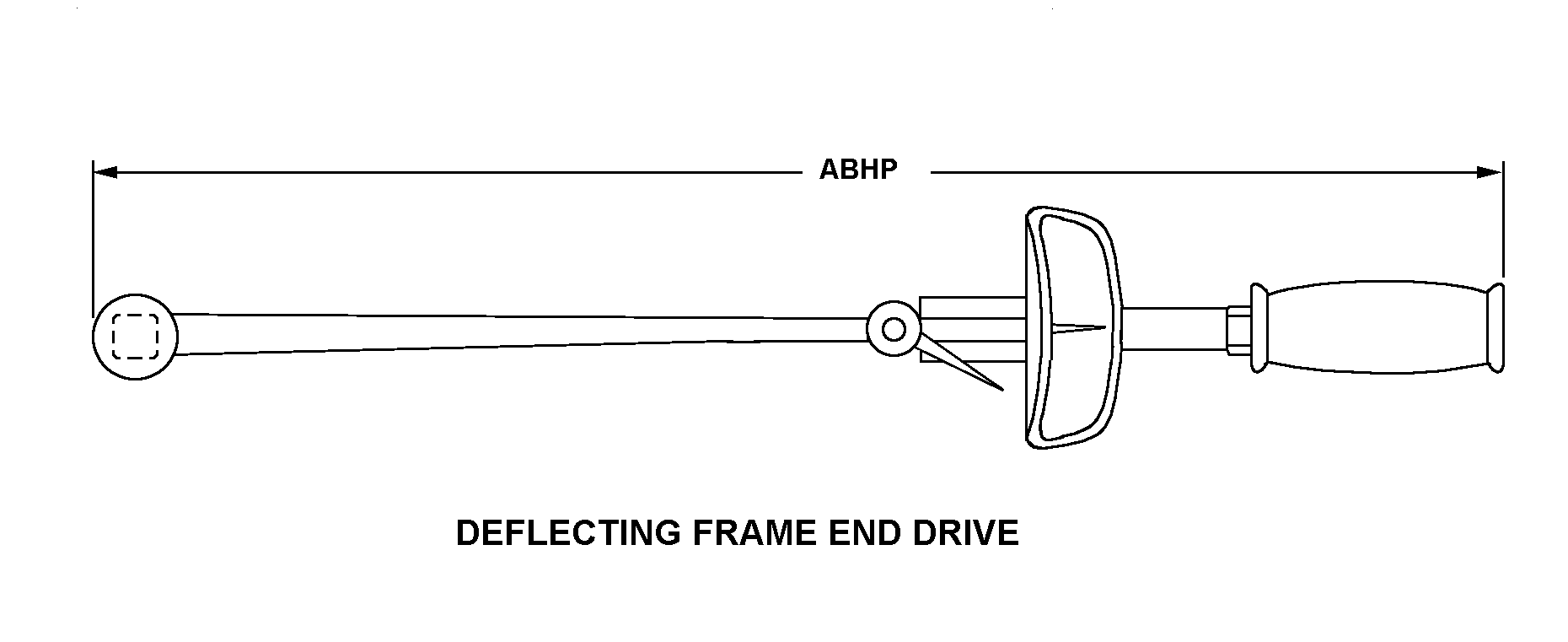

DEFLECTING FRAME END DRIVE
