NSN 5315-01-338-3385
Part Details | HEADLESS SHOULDER PIN
5315-01-338-3385 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Alternate Parts: 204479, 5315-01-338-3385, 01-338-3385, 5315013383385, 013383385
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 02, 1991 | 01-338-3385 | 16749 ( PIN, SHOULDER, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
SQUARE

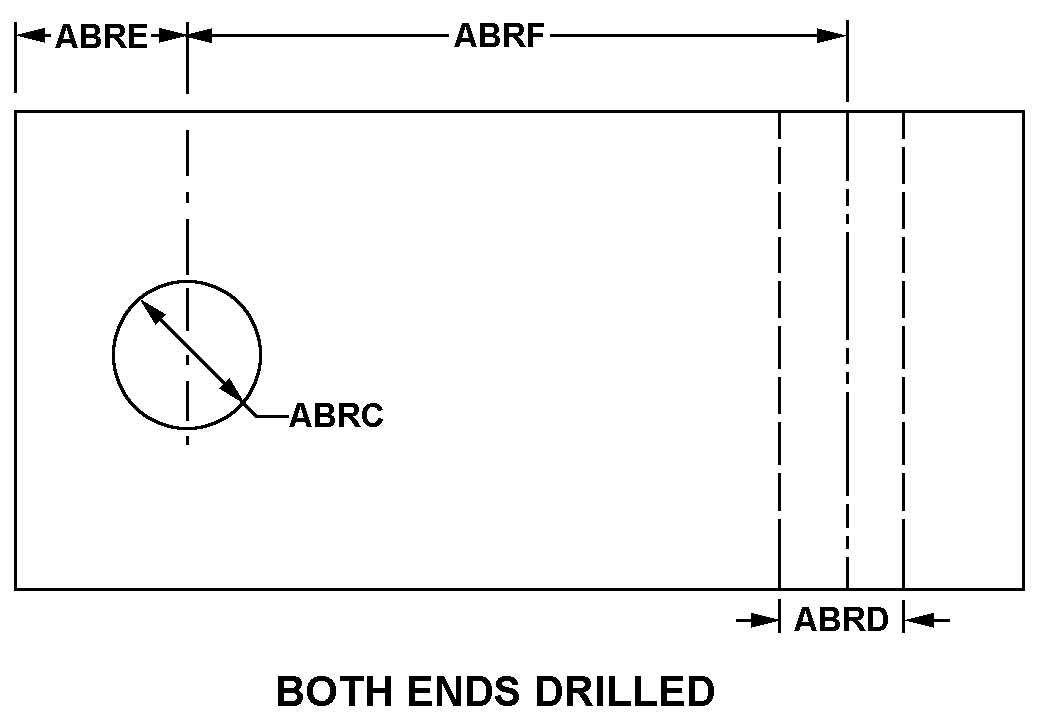

BOTH ENDS DRILLED
SHOULDER
Cross Reference | NSN 5315-01-338-3385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204479 | 98810 | AEROSONIC LLC |
Technical Data | NSN 5315-01-338-3385
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHOULDER |
| SHANK LENGTH | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.123 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| SHANK DIAMETER | 0.086 INCHES NOMINAL |
| OVERALL LENGTH | 0.500 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| FIRST END STYLE | SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.170 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | BOTH ENDS DRILLED |
| FIRST HOLE DIAMETER | 0.046 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.046 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 0.090 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
