NSN 5315-01-351-1953
Part Details | MACHINE KEY
5315-01-351-1953 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 738446, 5315-01-351-1953, 01-351-1953, 5315013511953, 013511953
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 02, 1992 | 01-351-1953 | 02378 ( KEY, MACHINE ) |

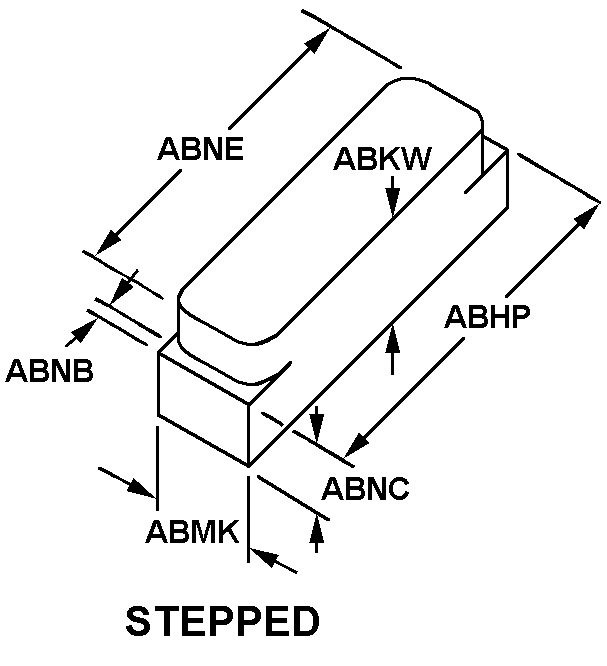

REFERENCE DRAWINGS & PICTURES
STEPPED
Cross Reference | NSN 5315-01-351-1953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 738446 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Technical Data | NSN 5315-01-351-1953
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED |
| OVERALL LENGTH | 0.344 INCHES MINIMUM AND 0.364 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.148 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| OVERALL WIDTH | 0.121 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 0.073 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| FLAT HEIGHT | 0.073 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| SECOND FLAT LENGTH | 0.198 INCHES NOMINAL |
