NSN 5315-01-365-3317
Part Details | KNURLED STRAIGHT PIN
5315-01-365-3317 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.
Alternate Parts: 60459, 6045-9, 5315-01-365-3317, 01-365-3317, 5315013653317, 013653317
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 06, 1992 | 01-365-3317 | 33037 ( PIN, STRAIGHT, KNURLED ) |
REFERENCE DRAWINGS & PICTURES
CHAMFERED
POINTED
CHAMFERED
POINTED

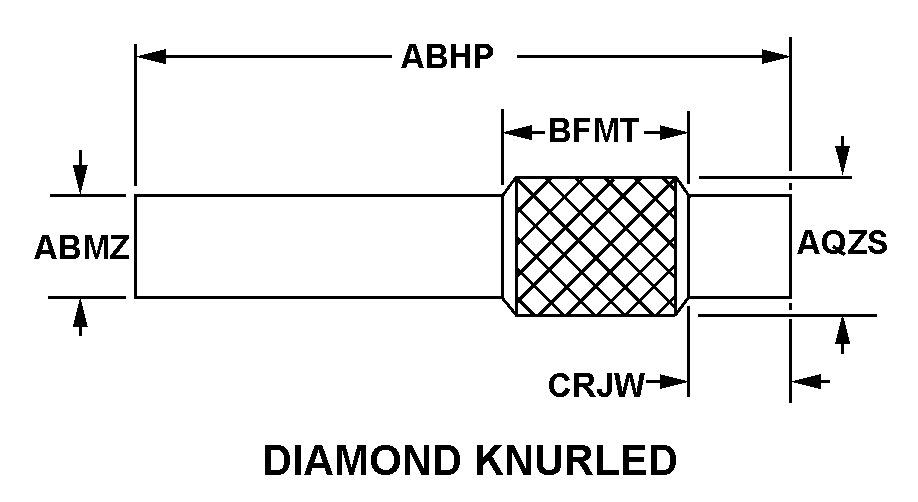

DIAMOND KNURLED
Cross Reference | NSN 5315-01-365-3317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6045-9 | 98085 | COX & COMPANY, INC. |
Technical Data | NSN 5315-01-365-3317
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DIAMOND KNURLED |
| OVERALL LENGTH | 3.050 INCHES NOMINAL |
| DIAMETER | 0.374 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| KNURL OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| KNURL LENGTH | 0.630 INCHES NOMINAL |
| KNURL TO END DISTANCE | 1.170 INCHES NOMINAL |
| FIRST END STYLE | POINTED |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 6 CHAMFERED |
| SECOND END TIP RADIUS | 0.045 INCHES NOMINAL |
| SECOND END TAPER LENGTH | 0.610 INCHES NOMINAL |
| SPECIAL FEATURES | 0.035 IN. NOMINAL FLAT AFTER KNURL ON ONE SIDE |
