NSN 5315-01-397-6892
Part Details | MACHINE KEY
5315-01-397-6892 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 809110003, 809110-0-03, 32546ITEM103, 3254-6ITEM103, 809110003, 809110-0-03, 32546ITEM103, 3254-6ITEM103, 5315-01-397-6892, 01-397-6892, 5315013976892, 013976892
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 18, 1994 | 01-397-6892 | 02378 ( KEY, MACHINE ) |

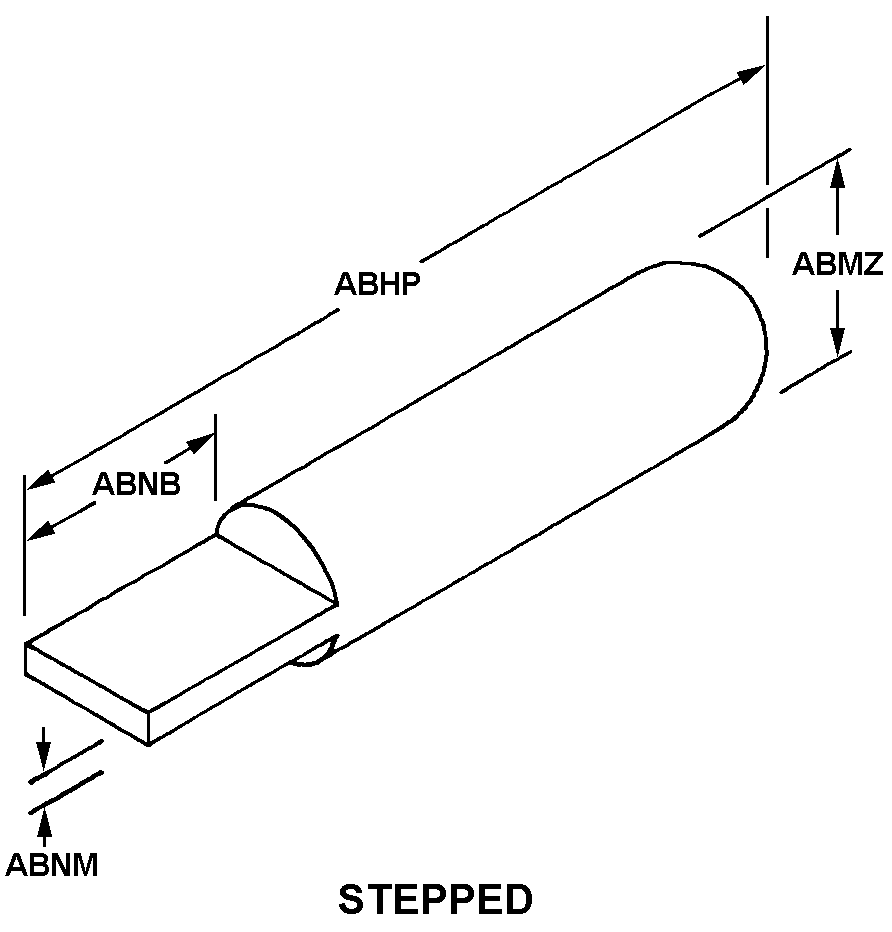

REFERENCE DRAWINGS & PICTURES
STEPPED
Cross Reference | NSN 5315-01-397-6892
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 809110-0-03 | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| 3254-6ITEM103 | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| 809110-0-03 | 96169 | ELECTRIC BOAT CORPORATION |
| 3254-6ITEM103 | 96169 | ELECTRIC BOAT CORPORATION |
Technical Data | NSN 5315-01-397-6892
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED |
| OVERALL LENGTH | 1.453 INCHES NOMINAL |
| FIRST FLAT LENGTH | 0.190 INCHES NOMINAL |
| THICKNESS | 0.857 INCHES NOMINAL |
