NSN 5315-01-417-9846
Part Details | KNURLED STRAIGHT PIN
5315-01-417-9846 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.
Alternate Parts: P146, 5315-01-417-9846, 01-417-9846, 5315014179846, 014179846
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 18, 1995 | 01-417-9846 | 33037 ( PIN, STRAIGHT, KNURLED ) |

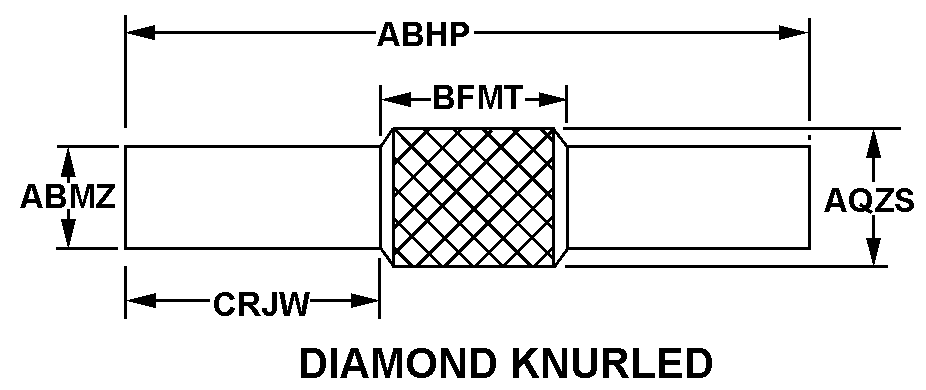

REFERENCE DRAWINGS & PICTURES
SQUARE
SQUARE
DIAMOND KNURLED
Cross Reference | NSN 5315-01-417-9846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P146 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICSDIVISION |
Technical Data | NSN 5315-01-417-9846
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DIAMOND KNURLED |
| OVERALL LENGTH | 0.437 INCHES NOMINAL |
| DIAMETER | 0.0625 INCHES NOMINAL |
| KNURL LENGTH | 0.125 INCHES NOMINAL |
| KNURL TO END DISTANCE | 0.187 INCHES NOMINAL |
| FIRST END STYLE | SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SPECIAL FEATURES | DIAMOND KNURL FULL DEPTH 32 PITCH |
