NSN 5315-01-423-6103
Part Details | QUICK RELEASE PIN
5315-01-423-6103 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Alternate Parts: NAS1336C2C25D, 5315-01-423-6103, 01-423-6103, 5315014236103, 014236103
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 04, 1996 | 01-423-6103 | 08323 ( PIN, QUICK RELEASE ) |
REFERENCE DRAWINGS & PICTURES

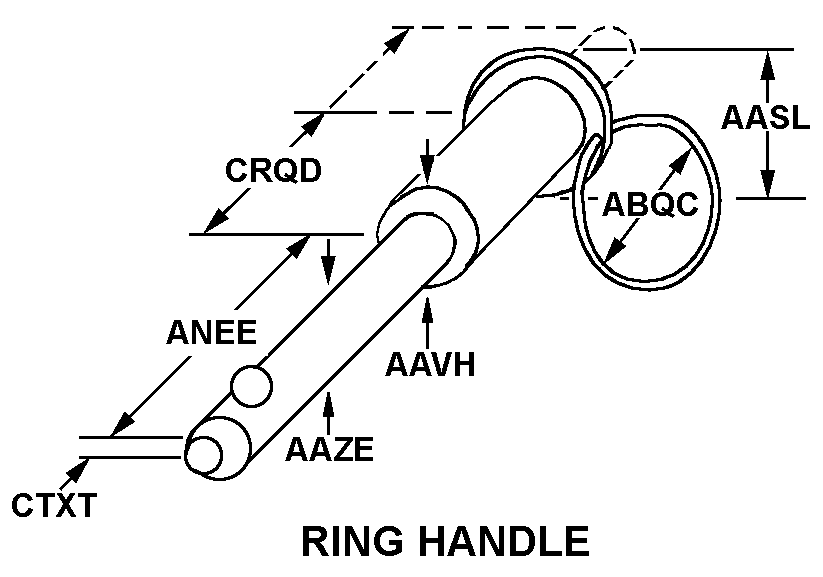

RING HANDLE
Cross Reference | NSN 5315-01-423-6103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1336C2C25D | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5315-01-423-6103
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RING HANDLE |
| HEAD DIAMETER | 0.780 INCHES NOMINAL |
| SHANK DIAMETER | 0.375 INCHES MAXIMUM |
| GRIP LENGTH | 2.500 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.530 INCHES NOMINAL |
| ACTUATION TYPE | PULL |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | RING |
