NSN 5315-01-440-8941
Part Details | MACHINE KEY
5315-01-440-8941 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 929111001, 9291-11001, 5315-01-440-8941, 01-440-8941, 5315014408941, 014408941
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 28, 1997 | 01-440-8941 | 02378 ( KEY, MACHINE ) |

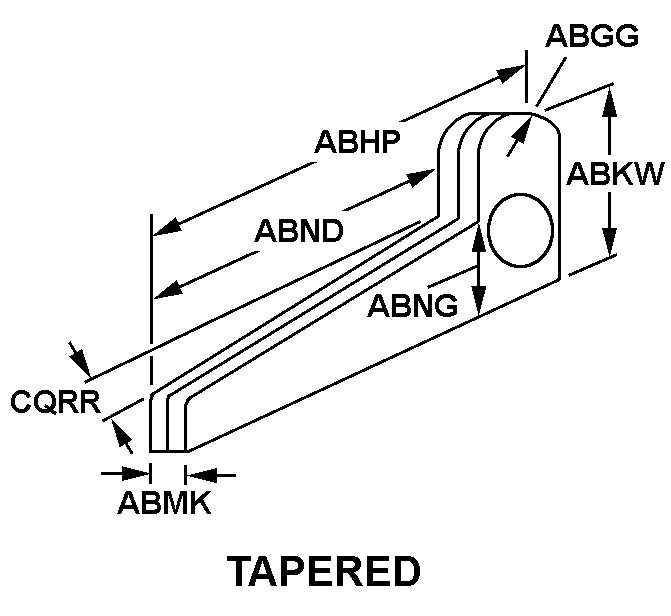

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 5315-01-440-8941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9291-11001 | 61918 | EASTERN COMPUTERS INCMFG DIV |
Technical Data | NSN 5315-01-440-8941
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED |
| RADIUS | 0.156 INCHES NOMINAL |
| OVERALL LENGTH | 1.536 INCHES NOMINAL |
| OVERALL HEIGHT | 0.757 INCHES NOMINAL |
| OVERALL WIDTH | 0.318 INCHES NOMINAL |
| TAPER LENGTH | 0.890 INCHES NOMINAL |
| TAPER HEIGHT | 0.402 INCHES NOMINAL |
| TAPER | 0.010 PER FOOT IN INCHES |
| MOUNTING HOLE TYPE AND QUANTITY | 2 PLAIN |
| MOUNTING HOLE DIAMETER | 0.234 INCHES NOMINAL AND 0.161 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.732 INCHES NOMINAL AND 0.190 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.318 INCHES NOMINAL AND 0.319 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS AL2024T4 STAINLESS |
| END ITEM IDENTIFICATION | COAST GUARD HH65A SLIDING DOOR LOCK ASSEMBLY |
