NSN 5315-01-454-2281
Part Details | HEADLESS GROOVED PIN
5315-01-454-2281 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 752640684060, 752-6406840-60, 5315-01-454-2281, 01-454-2281, 5315014542281, 014542281
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 24, 1998 | 01-454-2281 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
SQUARE

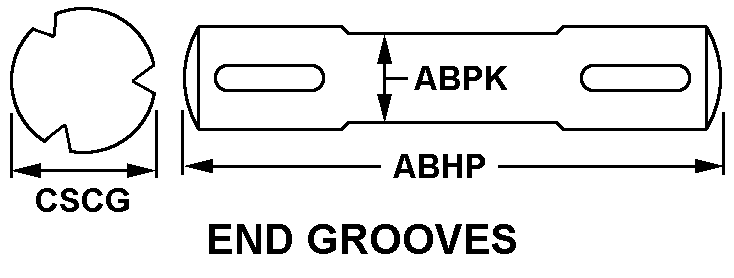

END GROOVES
Cross Reference | NSN 5315-01-454-2281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 752-6406840-60 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5315-01-454-2281
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | END GROOVES |
| OVERALL LENGTH | 0.810 INCHES NOMINAL |
| INTERMEDIATE DIAMETER | 0.156 INCHES NOMINAL |
| PIN LARGE END DIAMETER | 0.249 INCHES NOMINAL |
| FIRST END STYLE | SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | SQUARE END |
