NSN 5315-01-459-1197
Part Details | MACHINE KEY
5315-01-459-1197 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 170254, 170-254, 5315-01-459-1197, 01-459-1197, 5315014591197, 014591197
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 21, 1998 | 01-459-1197 | 02378 ( KEY, MACHINE ) |
REFERENCE DRAWINGS & PICTURES

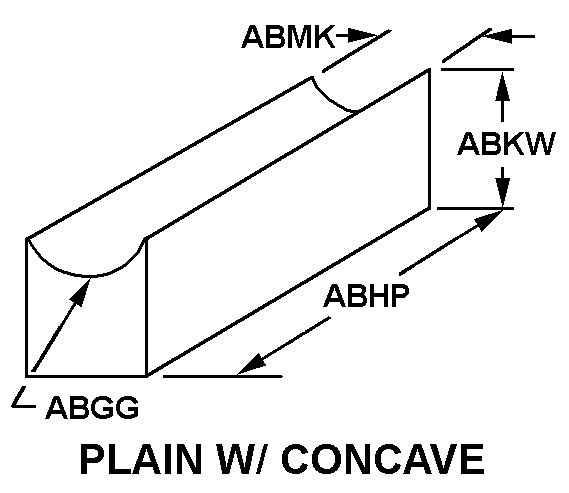

PLAIN W/CONCAVE
Cross Reference | NSN 5315-01-459-1197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 170-254 | 97153 | GOODRICH CORPORATIONDBA GOODRICH AEROSPACE |
Technical Data | NSN 5315-01-459-1197
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN W/CONCAVE |
| OVERALL LENGTH | 3.910 INCHES NOMINAL |
| OVERALL HEIGHT | 0.270 INCHES NOMINAL |
| OVERALL WIDTH | 0.800 INCHES NOMINAL |
| MOUNTING HOLE TYPE AND QUANTITY | 1 PLAIN AND 1 UNTHREADED-COUNTERBORED |
| SPECIAL FEATURES | MFR'S NAME: INSERT-DRIVE |
| END ITEM IDENTIFICATION | F-16 ACFT, WHEEL 18 X 5.5 IN. |
