NSN 5315-01-542-8006
Part Details | THREADED STRAIGHT PIN
5315-01-542-8006 A headless, cylindrically-shaped item, having external threads at one end only. The threaded and plain portions are of one nominal diameter. Includes items having cotter pin hole(s) on either one or both ends. Its length must not exceed 12 inches (304 MM). It may have a recess drive feature. See also PIN, STRAIGHT, HEADLESS. Excludes STUD, WELDING; and SETSCREW.
Alternate Parts: LS35337V05T03, 5315-01-542-8006, 01-542-8006, 5315015428006, 015428006
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 18, 2006 | 01-542-8006 | 16494 ( PIN, STRAIGHT, THREADED ) |
REFERENCE DRAWINGS & PICTURES

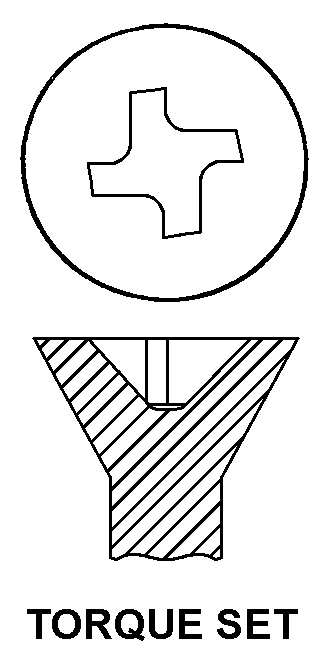

TORQUE SET
Cross Reference | NSN 5315-01-542-8006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS35337V05T03 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5315-01-542-8006
| Characteristic | Specifications |
|---|---|
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | THREADED END |
| INTERNAL DRIVE STYLE | TORQUE SET |
| THREAD SERIES DESIGNATOR | UNJC |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.312 INCHES NOMINAL |
| PIN OVERALL LENGTH | 0.499 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.1640 INCHES NOMINAL |
| PIN GRIP LENGTH | 0.187 INCHES NOMINAL |
| SPECIAL FEATURES | HEX RECESS IN THREADED END IS .150 DRILL DEPTH MAX, - .135 TO .115 HEX DEPTH - .119 TO .104 DIA. - TORQ-SET RECESS NO. 6 |
