NSN 5340-00-229-1227
Part Details | PAWL FASTENER
5340-00-229-1227 A self-contained item with a knob or a key actuated pawl, designed to fasten panels, doors, and the like, to frames or adjoining surfaces. The pawl may be preset to accommodate frames or surfaces of a specific thickness, or may be adjustable to accommodate frames or surfaces of variable thicknesses. For items with adjustable pawls, the pawl must be actuated through continual rotation of the knob or key until the pawl engages the adjoining surface.
Alternate Parts: 5203010001, 12068, 271030110, 27-10-301-10, 13900037, 1390-0037, 5340-00-229-1227, 00-229-1227, 5340002291227, 002291227
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 07, 1969 | 00-229-1227 | 28416 ( FASTENER, PAWL ) |

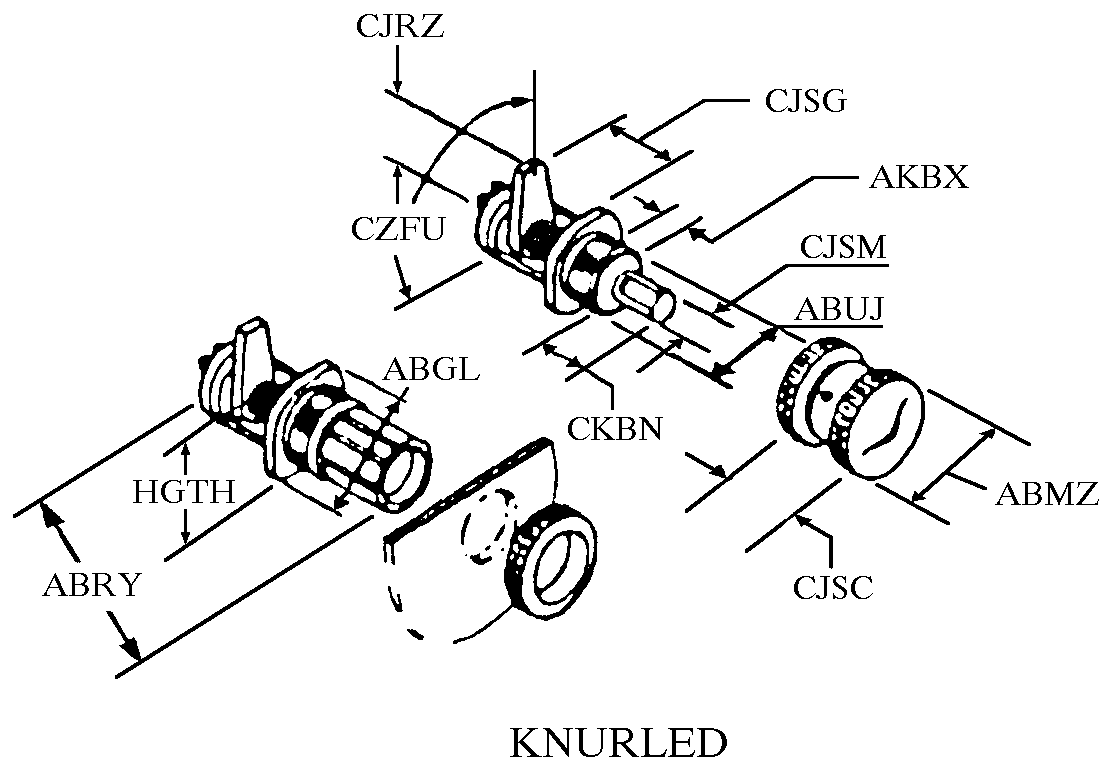

REFERENCE DRAWINGS & PICTURES
KNURLED
Cross Reference | NSN 5340-00-229-1227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5203010001 | 24672 | ADATUM INCDIV AUSTRON |
| 12068 | 80138 | KAY ELEMETRICS CORPORATION |
| 27-10-301-10 | 94222 | SOUTHCO, INC. |
| 1390-0037 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-00-229-1227
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KNURLED |
| WIDTH | 0.406 INCHES NOMINAL |
| DIAMETER | 0.266 INCHES NOMINAL |
| LENGTH | 0.813 INCHES NOMINAL |
| PAWL LENGTH FROM ACTUATING SHAFT CENTER TO PAWL END | 0.391 INCHES NOMINAL |
| KNOB LENGTH | 0.375 INCHES NOMINAL |
| HEIGHT | 0.406 INCHES NOMINAL |
| PAWL SWING ANGLE | 90.0 DEGREES NOMINAL |
| PAWL TYPE | STRAIGHT |
| OPERATIONAL DIRECTION | RIGHT-HAND |
