NSN 5340-00-287-6959
Part Details | BLOCK CLAMP
5340-00-287-6959 A square or rectangular multipiece item designed to be attached to another object or structure. It must have one or more holes designed to surround and securely grip items such as electrical cables, conduits, pipes, tubes and/or hoses. It may have one or more holes designed to prevent snagging or chafing and provide support and/or guidance to moving cable passing through it. It may have an integral clamping feature. For items specifically designed to serve as a guide, see FAIRLEAD, BLOCK and FAIRLEAD SECTION, BLOCK. Excludes BRACKET, PIPE.
Alternate Parts: 9351755, 7351755, 33035641, 3303564-1, 5340-00-287-6959, 00-287-6959, 5340002876959, 002876959
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 05, 1973 | 00-287-6959 | 37415 ( CLAMP, BLOCK ) |

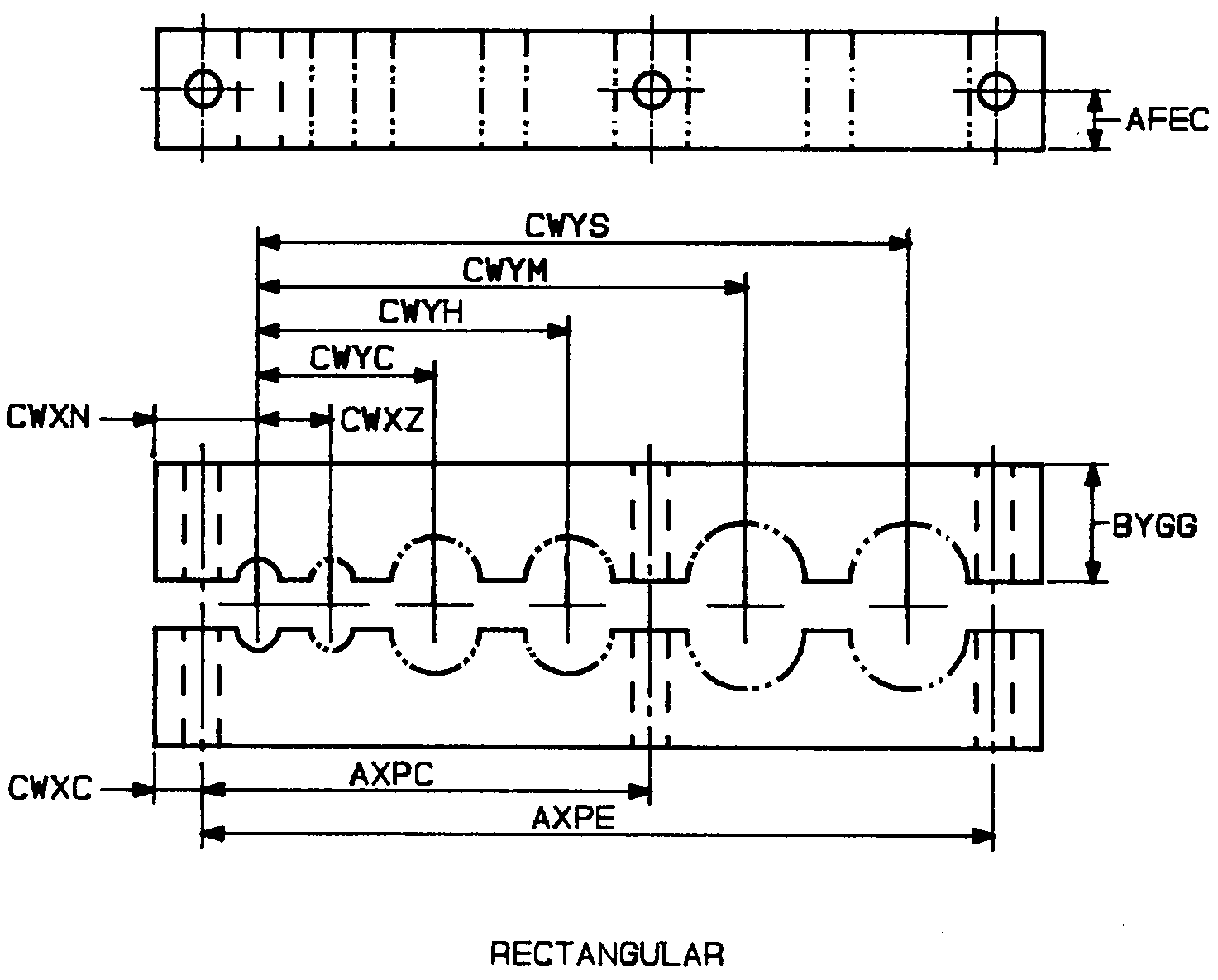

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5340-00-287-6959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9351755 | 63665 | CEF INDUSTRIES INCENVIRON DIV |
| 7351755 | 69889 | JAMESTOWN CONTAINER CORP |
| 3303564-1 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5340-00-287-6959
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR |
| MATERIAL | ALUMINUM ALLOY A356.0 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-21180 ALLOY A356 MIL SPEC SINGLE MATERIAL RESPONSE |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 2 |
| CLAMPING HOLE QUANTITY | 1 |
