NSN 5340-01-175-6655
Part Details | NUT AND BOLT LOCKING PLATE
5340-01-175-6655 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Alternate Parts: 92657, 356606, 5340-01-175-6655, 01-175-6655, 5340011756655, 011756655
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 04, 1984 | 01-175-6655 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

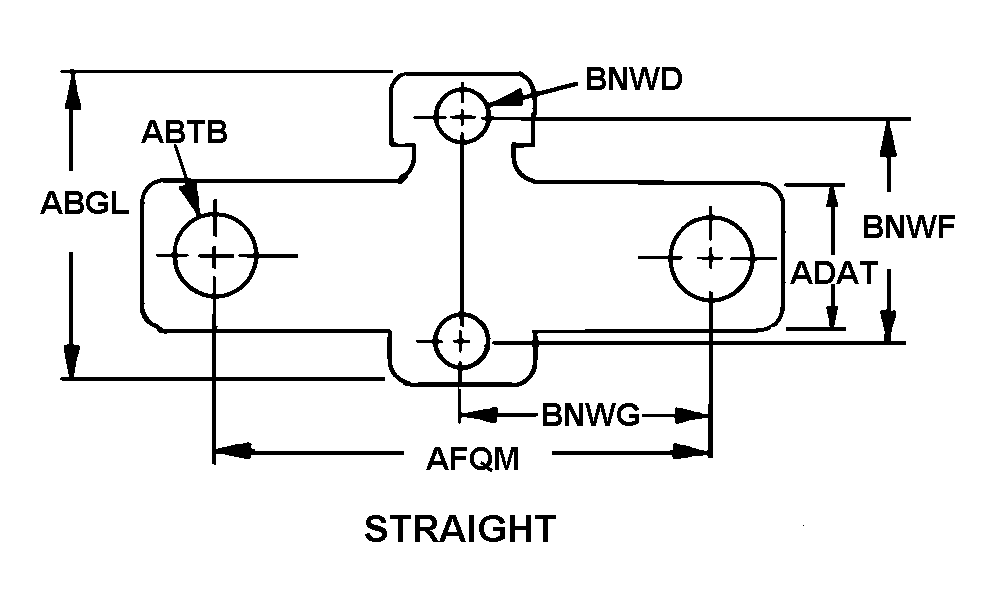

REFERENCE DRAWINGS & PICTURES
HALF ROUND
STRAIGHT
Cross Reference | NSN 5340-01-175-6655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92657 | 81306 | WHIRLPOOL CORPORATIONDBA WHIRLPOOL |
| 356606 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-01-175-6655
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | STRAIGHT |
| WIDTH | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| BODY WIDTH | 0.584 INCHES MINIMUM AND 0.604 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | HALF ROUND |
| PLATE THICKNESS | 0.068 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| INSIDE RADIUS | 0.280 INCHES NOMINAL |
| SPECIAL FEATURES | COLOR BLACK |
