NSN 5340-01-184-7851
Part Details | CATCH STRIKE
5340-01-184-7851 A platelike item designed to be fastened to a door, door jamb, or the like, for the purpose of receiving the mating pin, plunger or bolt, of a lock, latch, or catch. See also RECEPTACLE, FRICTION CATCH STUD.
Alternate Parts: 3M9761, 3M976-1, M85731111, M85731/1-11, MILF857311, MIL-F-85731/1, MS1410811, MS14108-11, 10163931, 5340-01-184-7851, 01-184-7851, 5340011847851, 011847851
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 23, 1984 | 01-184-7851 | 20251 ( STRIKE, CATCH ) |

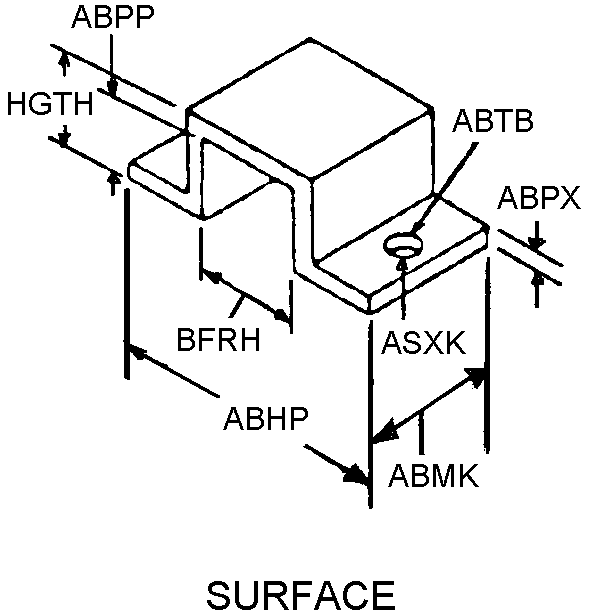

REFERENCE DRAWINGS & PICTURES
SURFACE
Cross Reference | NSN 5340-01-184-7851
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M976-1 | 76301 | BOEING COMPANY, THEDBA BOEING |
| M85731/1-11 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-F-85731/1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS14108-11 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 10163931 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
Technical Data | NSN 5340-01-184-7851
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 SURFACE |
| OVERALL LENGTH | 1.150 INCHES NOMINAL |
| OVERALL WIDTH | 0.438 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.167 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| HEIGHT | 0.375 INCHES NOMINAL |
| HOLE QUANTITY | 2 |
| MOUNTING FACILITY | UNTHREADED HOLE |
