NSN 5340-01-185-5485
Part Details | EXPANSION SHIELD
5340-01-185-5485 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Alternate Parts: HN161406, HN-1614-06, 100058006, 1000580-06, 100058006, 1000580-06, 5340-01-185-5485, 01-185-5485, 5340011855485, 011855485
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 31, 1984 | 01-185-5485 | 08322 ( SHIELD, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
DOUBLE CHAMFER

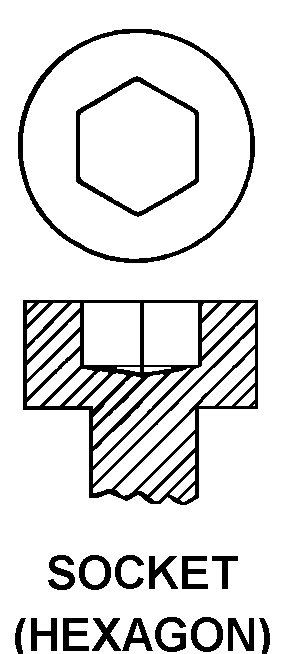

SOCKET (HEXAGON)
SINGLE EXPANSION MACHINE SCREW
Cross Reference | NSN 5340-01-185-5485
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HN-1614-06 | 46878 | FL INDUSTRIES INCPHILLIPS DRILL DIV |
| 1000580-06 | 1PQF4 | L3 TECHNOLOGIES, INC.DBA LINK SIMULATION & TRAINING |
| 1000580-06 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
Technical Data | NSN 5340-01-185-5485
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | 4 SINGLE EXPANSION MACHINE SCREW |
| HOLE ACCOMMODATION DIAMETER | 0.312 INCHES NOMINAL |
| INSERT TYPE FOR WHICH DESIGNED | MACHINE SCREW |
| INSERT SIZE | 0.250-20 UNC |
| UNIT QUANTITY | 2 |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| THREAD PROVISION | THREADED |
| FEATURES PROVIDED | LEFT HAND THREAD |
| SAFE OPERATING LOAD RATING | 10.0 POUNDS MINIMUM AND 15.0 POUNDS MAXIMUM |
| FASTENER TYPE | SCREW |
| NOMINAL LENGTH | 1.500 INCHES |
| HEAD STYLE | 7 DOUBLE CHAMFER |
| RECESSED DRIVE STYLE | SOCKET (HEXAGON) |
