NSN 5340-01-186-8768
Part Details | PIPE HANGER
5340-01-186-8768 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Alternate Parts: 5584788, 5578879, 5340PL0700096, 12338563, 5340-01-186-8768, 01-186-8768, 5340011868768, 011868768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 16, 1984 | 01-186-8768 | 42764 ( HANGER, PIPE ) |
REFERENCE DRAWINGS & PICTURES

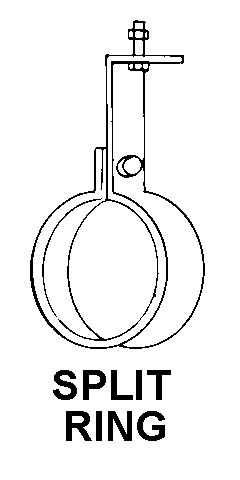

SPLIT RING
Cross Reference | NSN 5340-01-186-8768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5584788 | 34623 | AM GENERAL LLC |
| 5578879 | 34623 | AM GENERAL LLC |
| 5340PL0700096 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 12338563 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-01-186-8768
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$ESTEEL,ASTM A366 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A569 ASSN STD 1ST MATERIAL RESPONSE |
| SURFACE TREATMENT | PLASTIC POLYAMIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-46168 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | SPLIT RING |
| SUPPORTED ITEM AND QUANTITY | 1 PIPE |
| PIPE ACCOMMODATION DIAMETER | 2.9606 INCHES NOMINAL |
| SPECIAL FEATURES | HAS TWO MOUNTING FLANGES; TWO 0.312-18 UNC 2B RH HEX NUTS ATTACHED TO FLANGES |
