NSN 5340-01-187-2963
Part Details | DOUBLE ANGLE BRACKET
5340-01-187-2963 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.
Alternate Parts: 9256M28G01, 5340-01-187-2963, 01-187-2963, 5340011872963, 011872963
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 21, 1984 | 01-187-2963 | 20354 ( BRACKET, DOUBLE ANGLE ) |
REFERENCE DRAWINGS & PICTURES
ONE HOLE

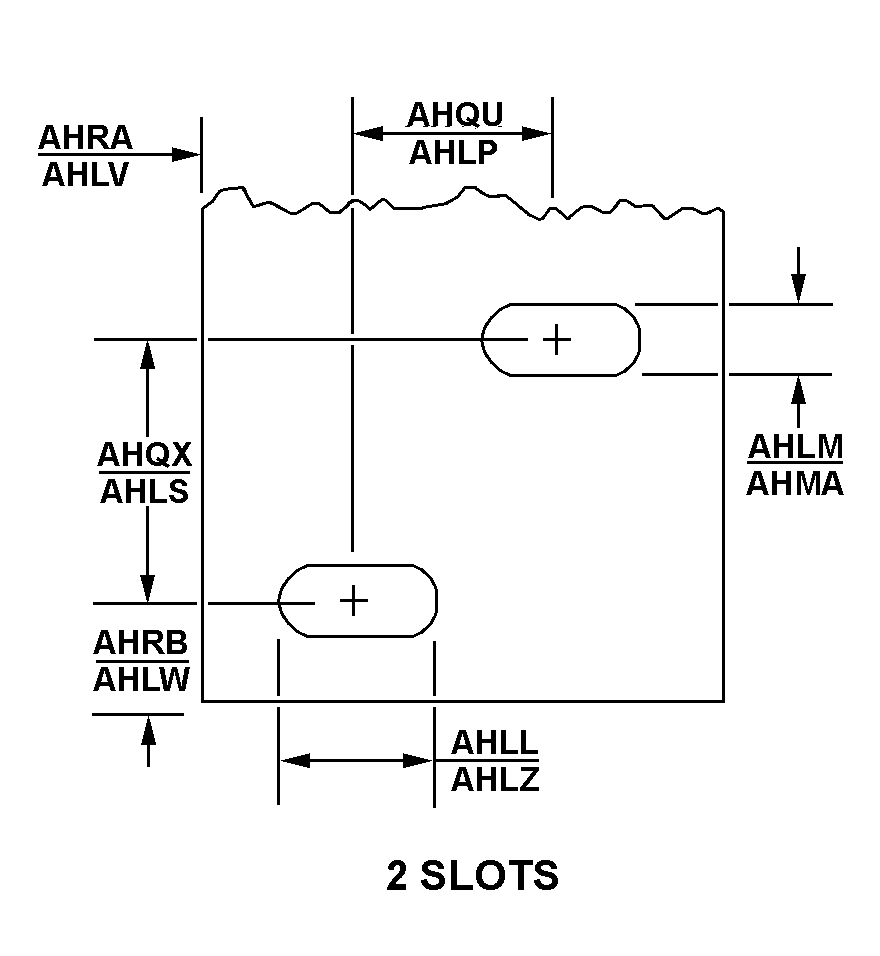

2 SLOTS
ONE HOLE
2 SLOTS
ADJACENT ANGLES
Cross Reference | NSN 5340-01-187-2963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9256M28G01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 5340-01-187-2963
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5599 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ADJACENT ANGLES |
| FIRST LEG THICKNESS | 0.076 INCHES MINIMUM AND 0.084 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.076 INCHES MINIMUM AND 0.084 INCHES MAXIMUM |
| CENTER SECTION THICKNESS | 0.076 INCHES MINIMUM AND 0.084 INCHES MAXIMUM |
| FIRST LEG ANGLE | 61.0 DEGREES MINIMUM AND 63.0 DEGREES MAXIMUM |
| SECOND LEG ANGLE | 89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.278 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |
| SECOND LEG SLOT WIDTH | 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 2 SLOTS |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | 1ST LEG CONTAINS A SPACER,MATERIAL IS STEEL PER AMS 5599 OR 5566 |
