NSN 5340-01-188-8771
Part Details | SNAP HOOK
5340-01-188-8771 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 13215E9742, 251, CATALOG #170 FIG.# 613, 5340-01-188-8771, 01-188-8771, 5340011888771, 011888771
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 08, 1984 | 01-188-8771 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
ROUND EYE

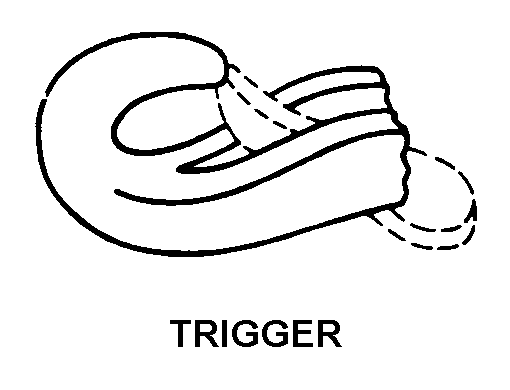

TRIGGER
Cross Reference | NSN 5340-01-188-8771
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13215E9742 | 97403 | CECOM LR CENTER |
| 251 | 79577 | NORTH AND JUDD INCWILCOX-CRITTENDEN DIV |
| CATALOG #170 FIG.# 613 | 46576 | PERKO INC |
Technical Data | NSN 5340-01-188-8771
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | TRIGGER |
| DESIGN TYPE | SWIVEL |
| END CONNECTION STYLE | ROUND EYE |
| INSIDE DIAMETER | 0.880 INCHES MINIMUM AND 1.120 INCHES MAXIMUM |
| HOOK MATERIAL | IRON, MALLEABLE |
| OVERALL LENGTH | 4.750 INCHES MINIMUM AND 5.750 INCHES MAXIMUM |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
