NSN 5340-01-193-2044
Part Details | BAIL HANDLE
5340-01-193-2044 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Alternate Parts: 101, 5340-01-193-2044, 01-193-2044, 5340011932044, 011932044
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 31, 1984 | 01-193-2044 | 20353 ( HANDLE, BAIL ) |
REFERENCE DRAWINGS & PICTURES

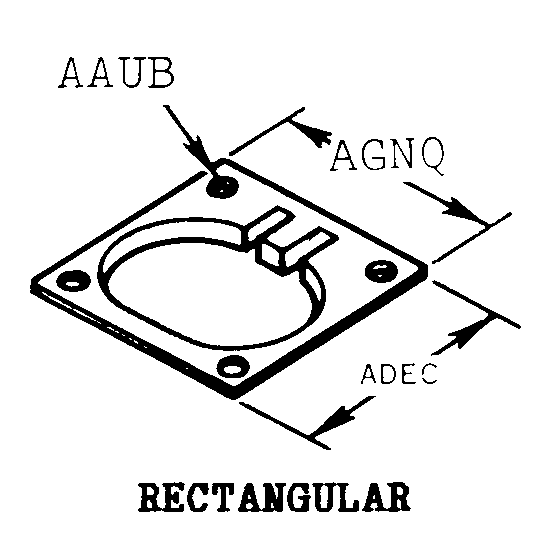

RECTANGULAR
RECTANGULAR OPEN
Cross Reference | NSN 5340-01-193-2044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101 | 86513 | PHOENIX LOCK CO INC |
Technical Data | NSN 5340-01-193-2044
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 RECTANGULAR OPEN |
| MOUNTING METHOD | MOUNTING PLATE |
| MOUNTING PLATE STYLE | RECTANGULAR |
| PLATE WIDTH | 2.250 INCHES NOMINAL |
| PLATE LENGTH | 3.000 INCHES NOMINAL |
