NSN 5340-01-201-9725
Part Details | SLIDING DOOR TRACK
5340-01-201-9725 A fabricated form made of metal or plastic, which serves as a runway for a sliding door hanger and which is bolted directly to a structure or held by means of brackets.
Alternate Parts: 102412071, 10241-207-1, 10412071, 1041-207-1, 5340-01-201-9725, 01-201-9725, 5340012019725, 012019725
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 26, 1985 | 01-201-9725 | 06690 ( TRACK, SLIDING DOOR ) |
REFERENCE DRAWINGS & PICTURES

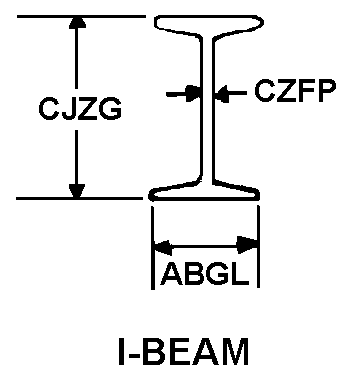

I-BEAM
Cross Reference | NSN 5340-01-201-9725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10241-207-1 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 1041-207-1 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-01-201-9725
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | I-BEAM |
| WIDTH | 4.000 INCHES NOMINAL |
| THICKNESS | 0.270 INCHES NOMINAL |
| SECTION SHAPE | STRAIGHT |
| SPECIAL FEATURES | SURFACE TREAT. PLASTIC POLYAMIDE MIL-C-22750;COLOR GRAY NO. 26373;O/A LGTH 1.0 FT;O/A HGT 8.0 IN. |
