NSN 5340-01-202-9269
Part Details | EXTENSION DRAWER SLIDE
5340-01-202-9269 An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position.
Alternate Parts: 0N378598, 5340-01-202-9269, 01-202-9269, 5340012029269, 012029269
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 08, 1985 | 01-202-9269 | 28191 ( SLIDE, DRAWER, EXTENSION ) |
REFERENCE DRAWINGS & PICTURES

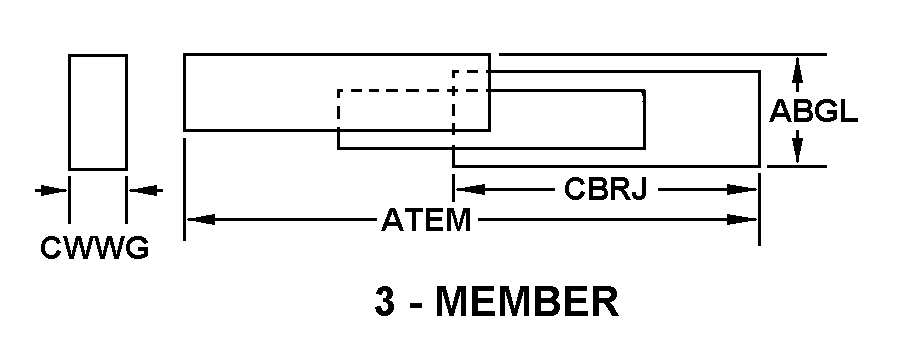

3 - MEMBER
Cross Reference | NSN 5340-01-202-9269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N378598 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5340-01-202-9269
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 - MEMBER |
| WIDTH | 0.706 INCHES NOMINAL |
| EXTENDED LENGTH | 18.031 INCHES NOMINAL |
| CLOSED LENGTH | 17.530 INCHES NOMINAL |
| HEIGHT | 0.024 INCHES NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| SIDE FOR WHICH DESIGNED | LEFT HAND |
